Hammer Fixed type chip-resistant special rubber wheel (radial ball bearing) 200 mm 400SR-XRZ200 1 piece

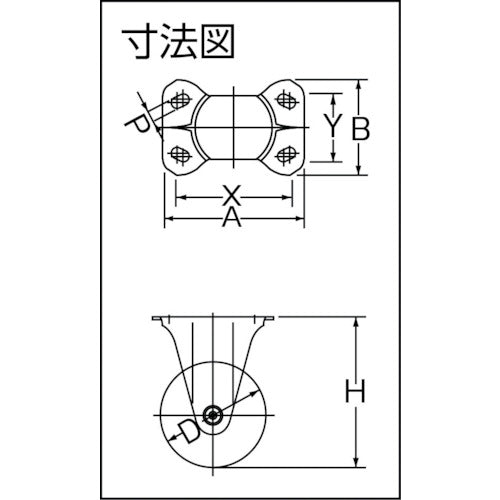

Catalog number: 400SR-XRZ200 Features: ●A caster that uses special rubber wheels that are less likely to get stuck with cutting chips. The special rubber wheels also have excellent oil resistance, so they can be used in environments where they come into contact with cutting oil. ●The moderate rubber elasticity that hard wheels do not have allows for smooth running. ●The wheel bearing section contains radial ball bearings. Applications: ●An all-purpose caster for medium to heavy loads. Specifications: Wheel diameter D (mm): 200 Type: Fixed Allowable load (daN): 220 Allowable load (kgf): 224.4 Wheel width (mm): 46 Mounting height H (mm): 240 Mounting seat A (mm): 150 Mounting seat B (mm): 105 Mounting pitch X (mm): 112-119 Mounting pitch Y (mm): 63-56 Mounting hole diameter P (mm): 13 Plate type Radial ball bearing included Material/Finish: Metal fittings: Steel Metal fittings surface treatment: Trivalent chromium chemical treatment Wheels: Steel wheels, special rubber Caution: Some types of oil may not be usable for long periods of time. Also, the effectiveness may vary depending on the usage environment.
