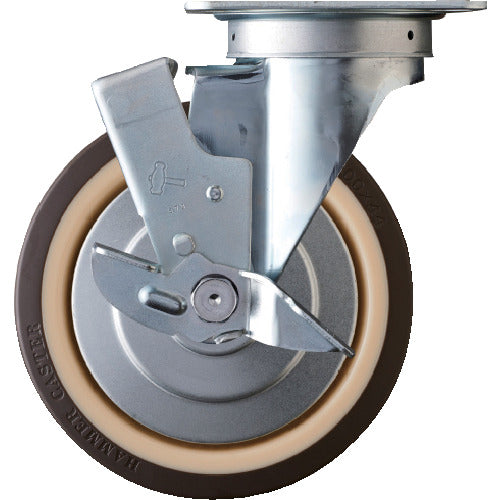

Hammer Swivel urethane wheel (nylon wheel, ball bearing) 200mm with stopper 419S-UB200 1 unit

Catalog number: 419S-UB200 Features: ●A high-quality large caster with high resistance to load and smooth rotation. ●The mounting base is large, so it is often used for moving machinery and transporting heavy objects. Uses: ● For transporting heavy objects Specifications: ● Wheel diameter D (mm): 200 ● Type: Free-moving (with stopper) ● Allowable load (daN): 200 ● Allowable load (kgf): 204 ● Wheel width (mm): 44 ● Mounting height H (mm): 240 ● Mounting seat A (mm): 140 ● Mounting seat B (mm): 140 ● Mounting pitch X (mm): 100-112 ● Mounting pitch Y (mm): 100-112 ● Mounting hole diameter P (mm): 13 ● Eccentricity E (mm): 55 ● Turning radius (mm): 157 ● Plate type ● Wheel fixing method: Nut Material/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium chemical treatment ● Wheels: Urethane (thermoplastic)
