Hammer Swivel Urethane Wheel (Nylon Wheel) 50mm 420G-UR50 1 pc

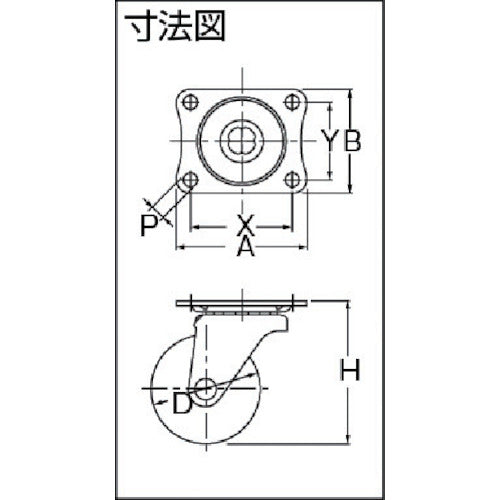

Catalog number: 420G-UR50 Features: ●The most widely produced and used in a variety of locations. ●Complies with RoHS. Applications: ●An all-purpose lightweight type that can be used both indoors and outdoors. Specifications: ●Wheel diameter D (mm): 50 ●Type: Swivel ●Allowable load (daN): 38 ●Allowable load (kgf): 38.76 ●Wheel width (mm): 21 ●Mounting height H (mm): 65 ●Mounting seat A (mm): 59 ●Mounting seat B (mm): 47 ●Mounting pitch X (mm): 46 ●Mounting pitch Y (mm): 35 ●Mounting hole diameter P (mm): 6.5 ●Allowable load (N): 380 ●Plate type ●Swivel type Materials/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent chromium conversion treatment ●Wheels: Nylon wheels, thermoplastic urethane (65 and 75 mm have resin bushings)
