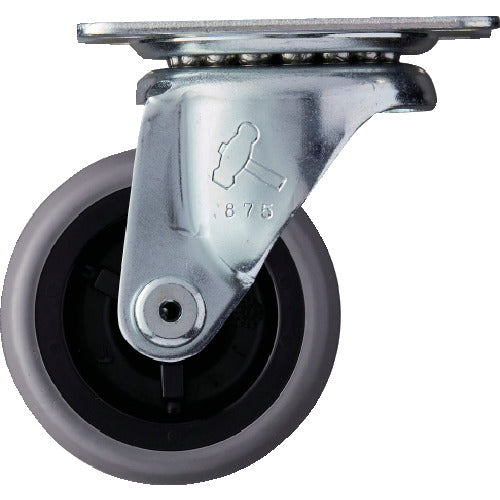

Hammer Swivel Elastomer Wheel (PP Wheel) 65mm 420G-L65 1pc

Catalog number: 420G-L65 Features: ●A cost-effective model that uses elastomer material to solve the marking problem. ●Achieves soft and quiet running performance not found in hard wheels. ●RoHS compliant. Specifications: ●Wheel diameter D (mm): 65 ●Type: Swivel ●Allowable load (daN): 40 ●Allowable load (kgf): 40.8 ●Wheel width (mm): 27 ●Mounting height H (mm): 80 ●Mounting seat A (mm): 70 ●Mounting seat B (mm): 58 ●Mounting pitch X (mm): 55 ●Mounting pitch Y (mm): 42 ●Mounting hole diameter P (mm): 8.8 ●Mounting height (mm): 80 ●Mounting seat (mm): 70 x 58 ●Mounting dimensions (mm): 55 x 42 ●Mounting hole diameter (mm): 8.8 ●Swivel type ●Plate type Material/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent chromium conversion treatment ●Wheels: Elastomer
