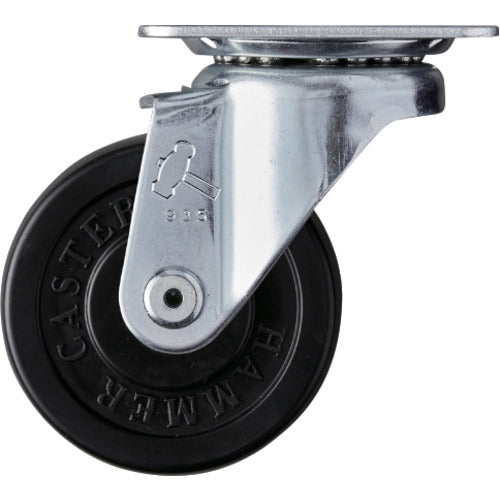

Hammer Swivel Rubber Wheel (Roller Bearing) 65mm 420S-RDB65 1 piece

Catalogue number: 420S-RDB65 Features: ● A typical large caster with high resistance to loads and smooth turning. ● A plate-type caster that is robust and stable. Applications: ● Factories, offices, etc. Specifications: ● Wheel diameter D (mm): 65 ● Type: Swivel ● Allowable load (daN): 50 ● Wheel width (mm): 26 ● Mounting height H (mm): 85 ● Mounting seat A (mm): 70 ● Mounting seat B (mm): 58 ● Mounting pitch X (mm): 55 ● Mounting pitch Y (mm): 42 ● Mounting hole diameter P (mm): 8.8 ● Eccentricity E (mm): 29 ● Turning radius (mm): 63 ● Plate type ● Wheel fixing method: Nut ● Roller bearing included Materials/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium conversion treatment ● Wheels: Rubber
