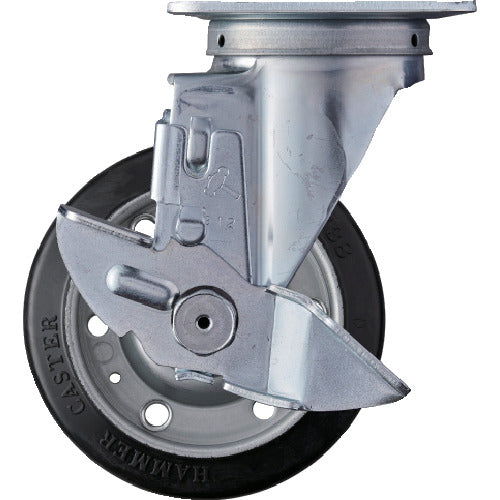

Hammer Swivel Rubber Wheel 125mm with Stopper 413S-R125 1pc

Catalogue number: 413S-R125 Features: ●High resistance to loads and smooth turning. Specifications: ●Wheel diameter D (mm): 125 ●Type: Swivel (with stopper) ●Allowable load (daN): 150 ●Allowable load (kgf): 153 ●Wheel width (mm): 38 ●Mounting height H (mm): 168 ●Mounting seat A (mm): 102 ●Mounting seat B (mm): 102 ●Mounting pitch X (mm): 75-80 ●Mounting pitch Y (mm): 75-80 ●Mounting hole diameter P (mm): 11 ●Plate type ●With swivel stopper ●Wheel shape: Steel wheel, rubber-wrapped wheel (with resin bushing) Material/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent chromium conversion treatment ●Wheels: Rubber
