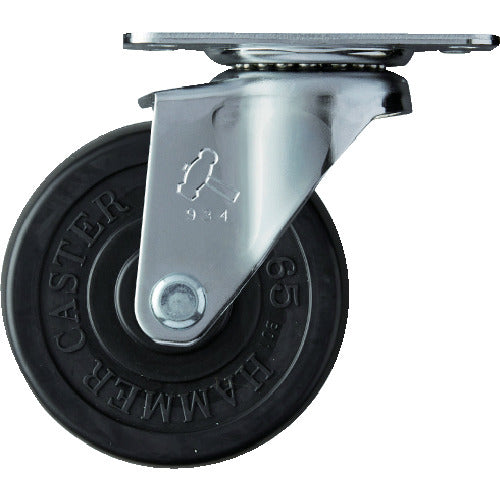

Hammer Swivel Rubber Wheel 65mm 420E-R65 1pc

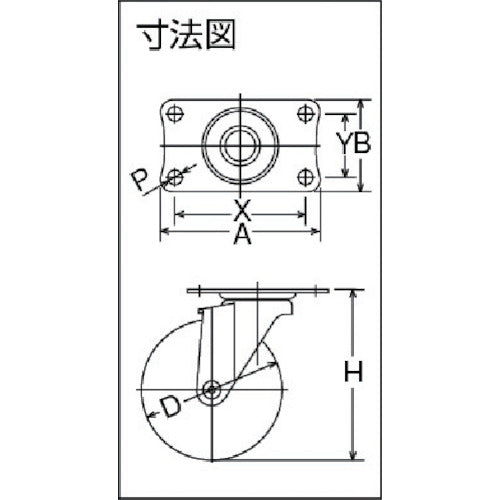

Catalogue number: 420E-R65 Features: ● Widely used in environments that demand design and lightness. ● RoHS compliant. Applications: ● All-purpose lightweight type for both indoor and outdoor use. Specifications: ● Wheel diameter D (mm): 65 ● Type: Swivel ● Allowable load (daN): 30 ● Allowable load (kgf): 30.6 ● Wheel width (mm): 21 ● Mounting height H (mm): 82 ● Mounting seat A (mm): 70 ● Mounting seat B (mm): 42 ● Mounting pitch X (mm): 56 ● Mounting pitch Y (mm): 28 ● Mounting hole diameter P (mm): 6.5 ● Allowable load (N): 300 ● Plate type ● Swivel Material/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Chrome plated finish ● Wheels: Rubber
