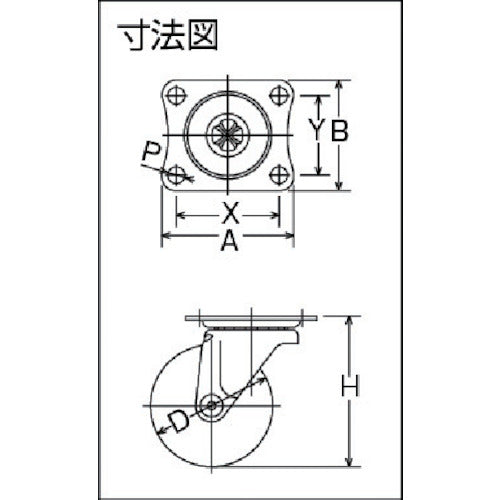

Catalogue number: 420G-R65 Features: ●The most widely produced and used in a variety of locations. ●Complies with RoHS. Applications: ●An all-purpose lightweight type that can be used both indoors and outdoors. Specifications: ●Wheel diameter D (mm): 65 ●Type: Swivel ●Allowable load (daN): 40 ●Allowable load (kgf): 40.8 ●Wheel width (mm): 27 ●Mounting height H (mm): 80 ●Mounting seat A (mm): 70 ●Mounting seat B (mm): 58 ●Mounting pitch X (mm): 55 ●Mounting pitch Y (mm): 42 ●Mounting hole diameter P (mm): 8.8 ●Allowable load (N): 400 ●Plate type ●Wheel shape: Nylon wheel with rubber wrapping Material/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent chromium conversion treatment ●Wheels: Rubber
