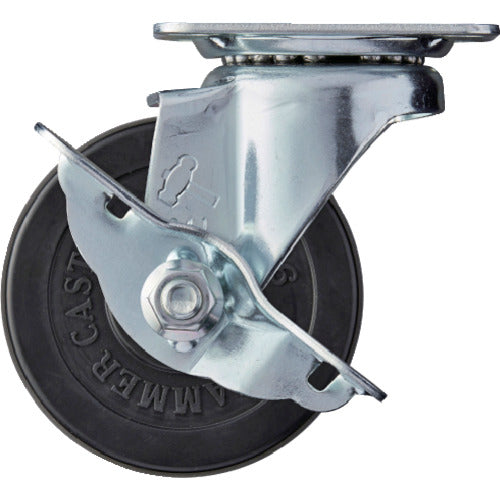

Hammer Swivel Rubber Wheel 75mm with Stopper 413S-R75 1pc

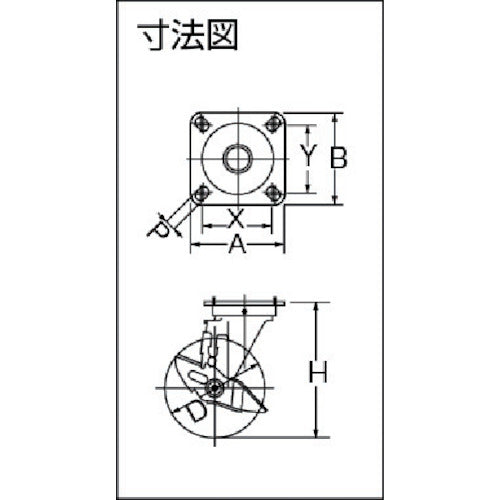

Catalogue number: 413S-R75 Features: ●High resistance to loads and smooth rotation. Applications: ●All-purpose caster for medium to heavy loads. Specifications: ●Wheel diameter D (mm): 75 ●Type: Swivel (with stopper) ●Allowable load (daN): 60 ●Allowable load (kgf): 61.2 ●Wheel width (mm): 26 ●Mounting height H (mm): 93 ●Mounting seat A (mm): 70 ●Mounting seat B (mm): 58 ●Mounting pitch X (mm): 55 ●Mounting pitch Y (mm): 42 ●Mounting hole diameter P (mm): 8.8 ●Allowable load (N): 600 ●Plate type ●Swivel (with stopper) ●Wheel shape: Integrated rubber wheel (with resin bushing) Material/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent chromium conversion treatment ●Wheels: Rubber
