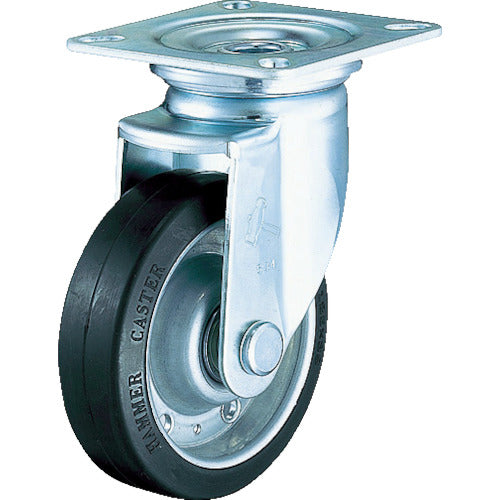

Hammer Special Rubber Wheel J Series Swivel 100mm 420J-XRZ100 1 pc

Catalog number: 420J-XRZ100 Features: ●A caster that uses special rubber wheels that are difficult for cutting chips to get stuck in. The special rubber wheels also have excellent oil resistance, so they can be used in environments where they come into contact with cutting oil. ●Smooth running is possible due to the moderate rubber elasticity that hard wheels do not have. ●The wheel bearing part contains radial ball bearings. Applications: ●For use in metal cutting factories and other locations where cutting chips fly or in environments where oil is used. Specifications: ● Wheel diameter D (mm): 100 ● Type: Swivel ● Allowable load (daN): 140 ● Allowable load (kgf): 143 ● Wheel width (mm): 32 ● Mounting height H (mm): 140 ● Mounting seat A (mm): 100 ● Mounting seat B (mm): 100 ● Mounting pitch X (mm): 70-80 ● Mounting pitch Y (mm): 70-80 ● Mounting hole diameter P (mm): 11 ● Plate type ● Radial ball bearing included ● Swivel Material/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium chemical treatment ● Wheels: Steel wheels, special rubber Caution: ● Some types of oil may not be usable for long periods of time. Also, the effectiveness may vary depending on the usage environment.
