Hammer, special resin wheel, swivel, SP included, 150mm, 519BPS-HBN150, 1 piece

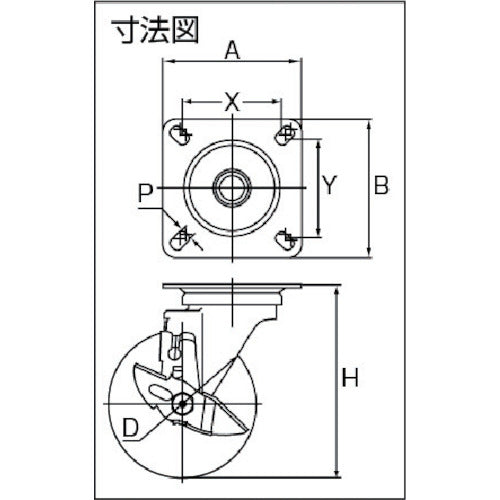

Catalog number: 519BPS-HBN150 Features: ●Special resin wheels provide better starting and turning start than rubber wheels, as well as better resistance to oil and chemicals. ●No markings (tire marks) are left when in use. Applications: ●For parts transport carts in automobile factories, etc., and automated guided vehicles (AGVs). Specifications: ● Wheel diameter D (mm): 150 ● Type: Free-wheeling (with stopper) ● Allowable load (daN): 250 ● Allowable load (kgf): 255 ● Wheel width (mm): 50 ● Mounting height H (mm): 187 ● Mounting seat A (mm): 114 ● Mounting seat B (mm): 102 ● Mounting pitch X (mm): 80-88 ● Mounting pitch Y (mm): 76-64 ● Mounting hole diameter P (mm): 13 ● Mounting pitch (mm): 80 x 76 (88 x 64) ● Free-wheeling (with stopper) ● Plate type Material/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium chemical treatment ● Wheels: Special resin wheels
