Hammer, special steel plate, swivel, nylon B wheel, 100 mm, 420YS-NRB100, 1 piece

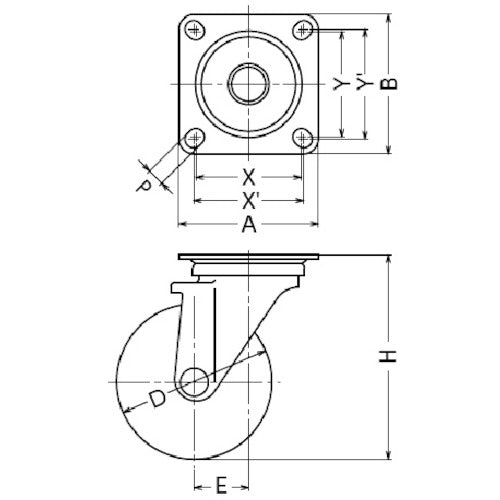

Catalogue number: 420YS-NRB100 Features: ● Heat treatment of special steel makes it lighter and stronger, which is environmentally friendly. Applications: ● For places where lightness is continuously required. Specifications: ● Wheel diameter D (mm): 100 ● Type: Swivel ● Allowable load (daN): 160 ● Allowable load (kgf): 163.2 ● Wheel width (mm): 29 ● Mounting height H (mm): 132 ● Mounting seat A (mm): 90 ● Mounting seat B (mm): 90 ● Mounting pitch X (mm): 68-71 ● Mounting pitch Y (mm): 68-71 ● Mounting hole diameter P (mm): 11 ● Swivel ● Plate type Material/Finish: ● Metal fittings: Special steel ● Metal fittings surface treatment: Trivalent chromium conversion treatment ● Wheels: Nylon solid wheel (with radial ball bearings)
