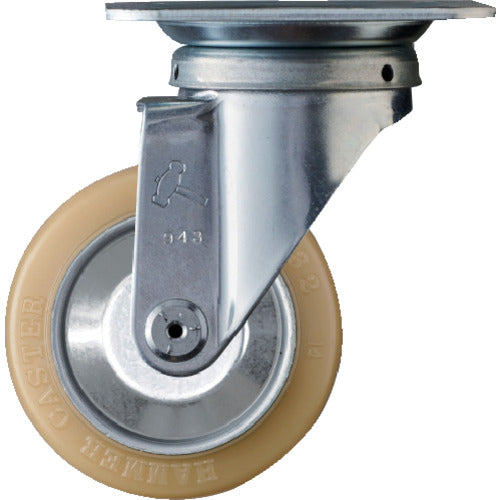

Hammer Swivel Urethane Wheel (Roller Bearing) 100mm 400S-URB100 1 pc

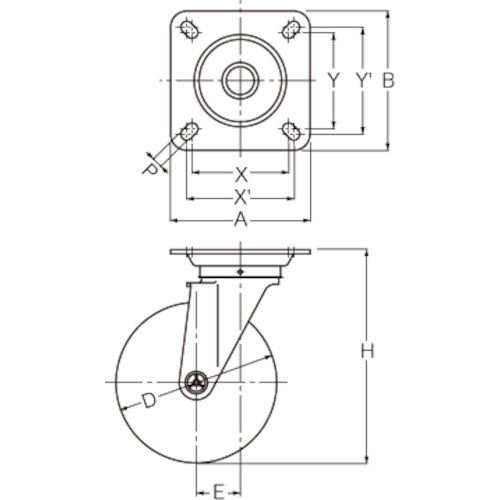

Catalogue number: 400S-URB100 Features: ●A high-quality, large caster with high resistance to loads and smooth rotation. ●Usage example: The mounting base is large and it is often used for moving machinery and transporting heavy objects. ●The rotating part has steel balls built into two levels, upper and lower. Uses: ● For transporting heavy objects Specifications: ● Wheel diameter D (mm): 100 ● Type: Swivel type ● Allowable load (daN): 120 ● Allowable load (kgf): 122.4 ● Wheel width (mm): 32 ● Mounting height H (mm): 140 ● Mounting seat A (mm): 108 ● Mounting seat B (mm): 108 ● Mounting pitch X (mm): 70-80 ● Mounting pitch Y (mm): 70-80 ● Mounting hole diameter P (mm): 11 ● Eccentricity E (mm): 35 ● Turning radius r (mm): 86 ● Wheel fixing method: Nut ● Plate type Materials/Finish: ● Body: Steel ● Metal fittings surface treatment: Trivalent chromium chemical treatment ● Wheels: Urethane
