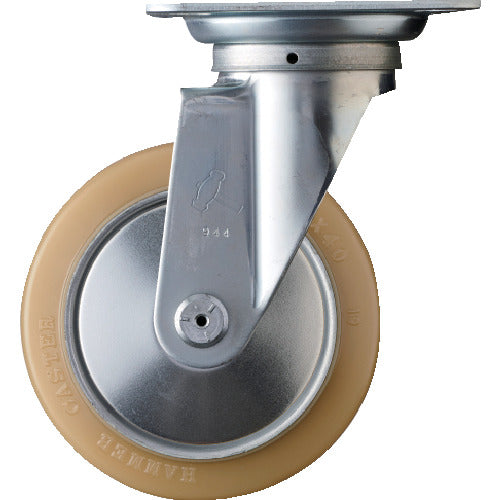

Hammer Swivel Urethane Wheel (Roller Bearing) 150mm 400S-URB150 1 pc

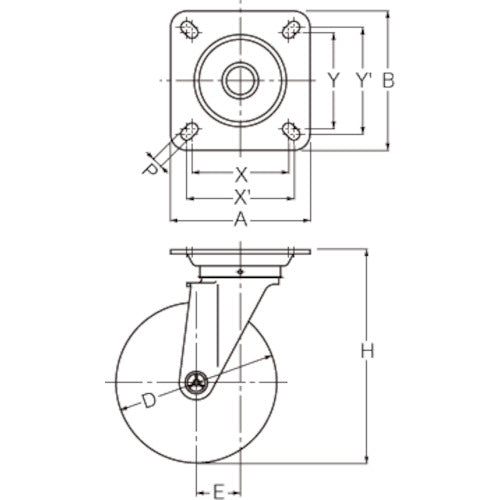

Catalogue number: 400S-URB150 Features: ●A high-quality large caster with high resistance to load and smooth rotation. ●Usage example: The mounting base is large and it is often used for moving machinery and transporting heavy objects. ●Steel balls are built into the rotating part in two stages, upper and lower. Uses: ● For transporting heavy objects Specifications: ● Wheel diameter D (mm): 150 ● Type: Swivel type ● Allowable load (daN): 160 ● Allowable load (kgf): 163.2 ● Wheel width (mm): 40 ● Mounting height H (mm): 199 ● Mounting seat A (mm): 130 ● Mounting seat B (mm): 130 ● Mounting pitch X (mm): 90-100 ● Mounting pitch Y (mm): 90-100 ● Mounting hole diameter P (mm): 11 ● Eccentricity E (mm): 41 ● Turning radius r (mm): 118 ● Wheel fixing method: Nut ● Plate type Materials/Finish: ● Body: Steel ● Metal fittings surface treatment: Trivalent chromium chemical treatment ● Wheels: Urethane
