ハンマーキャスター(株)
Hammer Heavy duty fixed rubber wheel (casting wheel, radial ball bearing) 125mm 500BPR-CR125 1 piece
Hammer Heavy duty fixed rubber wheel (casting wheel, radial ball bearing) 125mm 500BPR-CR125 1 piece
Regular price
¥8,012
Regular price
Sale price
¥8,012
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

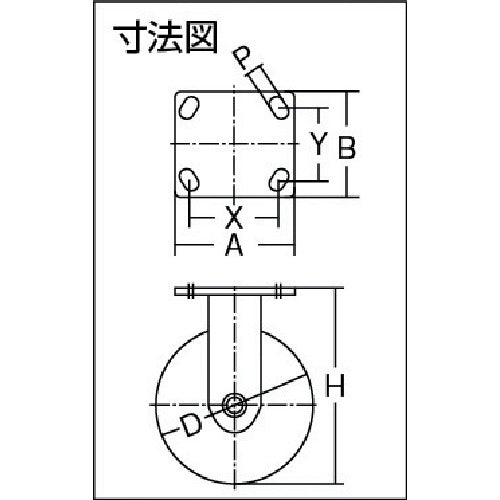

Catalog number: 500BPR-CR125 Features: ●A caster specially designed for heavy loads. Extremely thick material is welded, and the swivel section is hardened. ●The bearing section has a radial ball bearing, which allows the wheels to rotate smoothly. Applications: ●For very heavy loads. Specifications: ●Wheel diameter D (mm): 125 ●Type: Fixed type ●Allowable load (daN): 450 ●Allowable load (kgf): 459 ●Wheel width (mm): 50 ●Mounting height H (mm): 164 ●Mounting seat A (mm): 114 ●Mounting seat B (mm): 102 ●Mounting pitch X (mm): 80-88 ●Mounting pitch Y (mm): 76-64 ●Mounting hole diameter P (mm): 13 ●Plate type ●Fixed type Materials/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent chromium conversion treatment ●Wheels: Cast wheels, rubber
