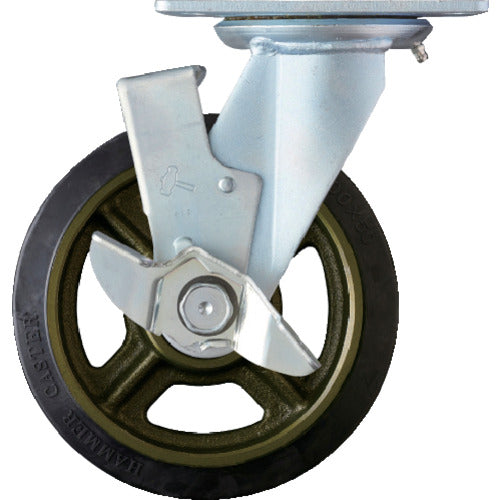

Hammer Heavy duty swivel rubber wheel (casting wheel, radial ball bearing) 200mm SP included 519BPS-CR200 1 piece
Hammer Heavy duty swivel rubber wheel (casting wheel, radial ball bearing) 200mm SP included 519BPS-CR200 1 piece
Regular price
¥14,963
Regular price
Sale price
¥14,963
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalog number: 519BPS-CR200 Features: ●A caster specially designed for heavy loads. Extremely thick material is welded and the swivel section is hardened. ●The bearing section is equipped with a radial ball bearing, allowing the wheels to rotate smoothly. Applications: ●For extremely heavy loads. Specifications: ● Wheel diameter D (mm): 200 ● Type: Free-wheeling (with stopper) ● Allowable load (daN): 500 ● Allowable load (kgf): 510 ● Wheel width (mm): 50 ● Mounting height H (mm): 246 ● Mounting seat A (mm): 159 ● Mounting seat B (mm): 115 ● Mounting pitch X (mm): 125.5-133.5 ● Mounting pitch Y (mm): 62-85.5 ● Mounting hole diameter P (mm): 13 ● Eccentricity E (mm): 58 ● Turning radius (mm): 163 ● Cast wheel ● Includes radial ball bearings Materials/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium conversion treatment ● Wheels: Rubber
