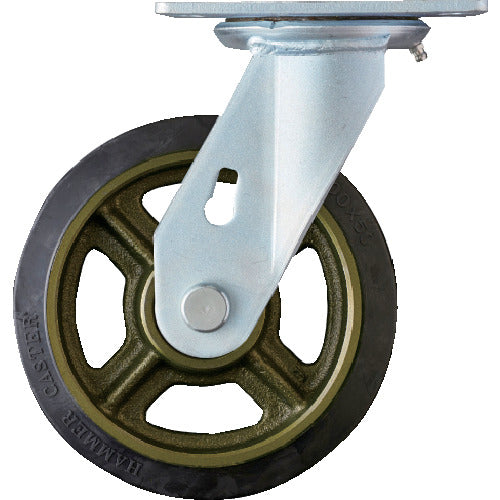

Hammer Heavy duty swivel rubber wheel (casting wheel, radial ball bearing) 200mm 500BPS-CR200 1 piece

Catalog number: 500BPS-CR200 Features: ●A caster that meets durability and load-bearing performance by welding (welding) extremely thick material. Uses: ●For large machines and large transport vehicles. Specifications: ●Wheel diameter D (mm): 200 ●Type: Swivel ●Allowable load (daN): 500 ●Allowable load (kgf): 510 ●Wheel width (mm): 50 ●Mounting height H (mm): 246 ●Mounting seat A (mm): 159 ●Mounting seat B (mm): 115 ●Mounting pitch X (mm): 125.5-133.5 ●Mounting pitch Y (mm): 62-85.5 ●Mounting hole diameter P (mm): 13 ●Eccentricity E (mm): 58 ●Turning radius (mm): 163 ●Cast wheel ●Radial ball bearing included Material/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent chromium conversion treatment ●Wheels: Rubber
