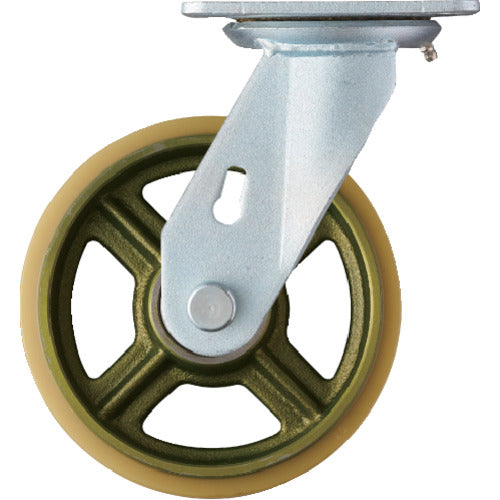

Hammer Heavy-duty swivel urethane B wheel 500HPS-CU200 1 piece

Catalog number: 500HPS-CU200 Features: ● Casters made from extremely thick material by welding, providing durability and load-bearing performance. Applications: ● For large machinery and large transport vehicles. Specifications: ● Wheel diameter D (mm): 200 ● Type: Free-moving ● Allowable load (daN): 500 ● Allowable load (kgf): 510 ● Wheel width (mm): 50 ● Mounting height H (mm): 246 ● Mounting seat A (mm): 140 ● Mounting seat B (mm): 140 ● Mounting pitch X (mm): 100-112 ● Mounting pitch Y (mm): 100-112 ● Mounting hole diameter P (mm): 13 ● Boss width B (mm): 50 ● Hole diameter d (mm): 16.1 ● Eccentricity E (mm): 58 ● Turning radius (mm): 163 ● Cast wheel ● With radial ball bearings Materials/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium conversion treatment ● Wheels: Urethane
