Hammer silent fixed rubber wheel (nylon wheel, radial ball bearing) 150mm 420SRP-FR150 1 piece

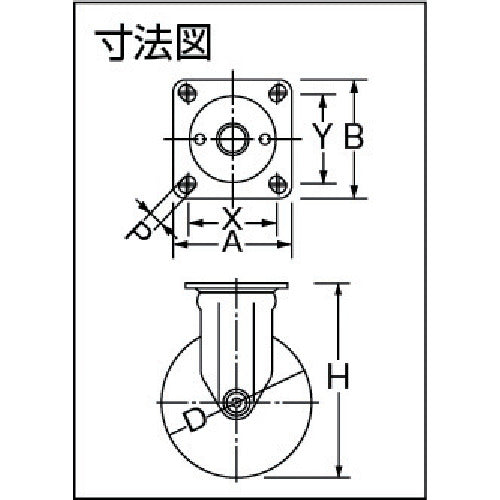

Catalog number: 420SRP-FR150 Features: ● Reduces noise generated when turning and when the wheels rotate. ● Reduces turning force. ● Same mounting pitch as the swivel type. Applications: ● Quiet, all-purpose caster for medium to heavy duty use. Specifications: ● Wheel diameter D (mm): 150 ● Type: Fixed type ● Permissible load (daN): 140 ● Permissible load (kgf): 142.8 ● Wheel width (mm): 38 ● Mounting height H (mm): 190 ● Mounting seat A (mm): 106 ● Mounting seat B (mm): 111 ● Mounting pitch X (mm): 75-80 ● Mounting pitch Y (mm): 75-80 ● Mounting hole diameter P (mm): 11 ● Permissible load (N): 1400 ● Plate type ● Main body swivel part, wheel bearing part: Uses radial ball bearings ● Fixed type Materials/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium chemical treatment ● Wheels: Nylon wheels, rubber
