Hammer Silent fixed rubber wheel (nylon wheel, radial ball bearing) 65mm 420BBR-FR65 1 piece

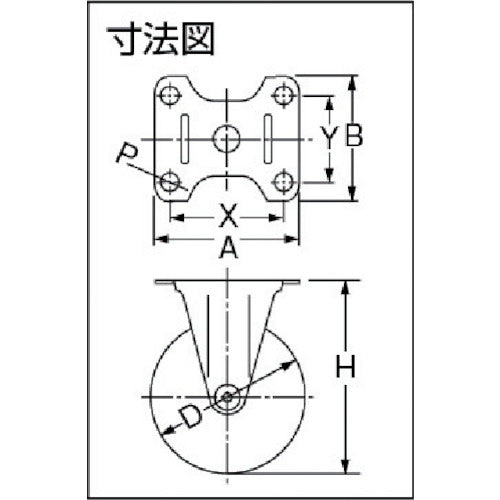

Catalogue number: 420BBR-FR65 Features: ● Reduces noise generated when turning and when the wheels rotate. ● RoHS compliant. Applications: ● For equipment that requires quiet operation. Specifications: ● Wheel diameter D (mm): 65 ● Type: Fixed type ● Allowable load (daN): 50 ● Allowable load (kgf): 51 ● Wheel width (mm): 27 ● Mounting height H (mm): 85 ● Mounting seat A (mm): 70 ● Mounting seat B (mm): 60 ● Mounting pitch X (mm): 55 ● Mounting pitch Y (mm): 42 ● Mounting hole diameter P (mm): 8.8 ● Allowable load (N): 500 ● Plate type ● Radial ball bearings are used for the main body turning part and bearing part ● Fixed type Materials/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium plating finish ● Wheels: Nylon wheel, rubber
