Hammer, silent swivel rubber wheel (nylon wheel, bearing), 75mm, with stopper, 417BBS-FR75, 1 piece

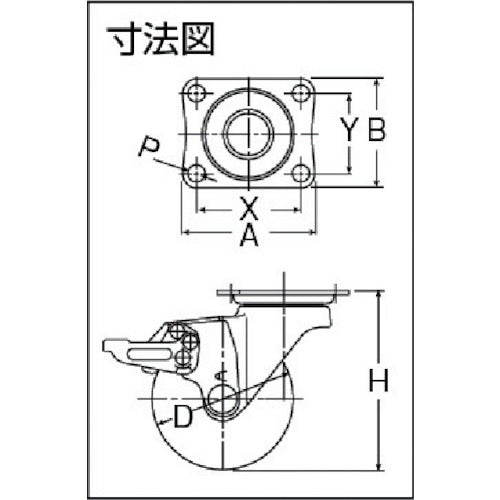

Catalogue number: 417BBS-FR75 Features: ● Reduces noise generated when turning and when the wheels rotate. ● RoHS compliant. Applications: ● For equipment that requires quiet operation. Specifications: ● Wheel diameter D (mm): 75 ● Type: Swivel type (with stopper) ● Allowable load (daN): 60 ● Allowable load (kgf): 61.2 ● Wheel width (mm): 27 ● Mounting height H (mm): 95 ● Mounting seat A (mm): 70 ● Mounting seat B (mm): 58 ● Mounting pitch X (mm): 55 ● Mounting pitch Y (mm): 42 ● Mounting hole diameter P (mm): 8.8 ● Allowable load (N): 600 ● Plate type ● Radial ball bearings are used for the main body turning part and bearing part ● Swivel type (with stopper) Materials/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium conversion treatment ● Wheels: Nylon wheel, rubber
