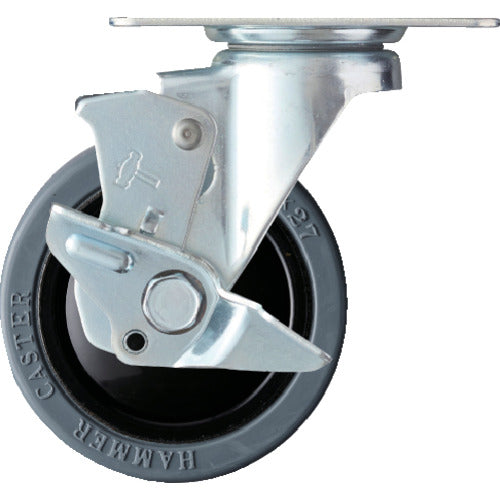

Hammer, silent swivel rubber wheel (nylon wheel, radial ball bearing), 100 mm, with stopper, 413BBE-FR100, 1 piece

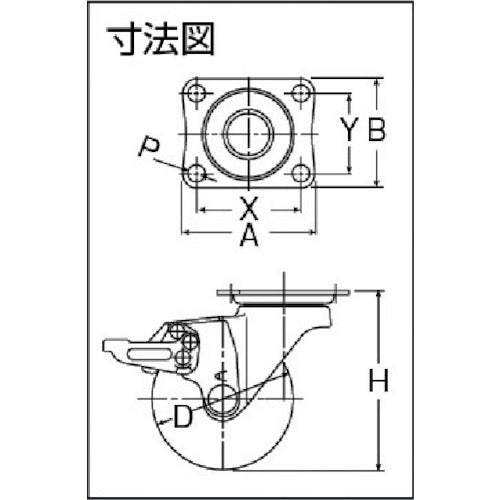

Catalog number: 413BBE-FR100 Features: ● Reduces noise generated when turning and when the wheels rotate. ● RoHS compliant. Applications: ● For carts that require light weight and quiet operation. Specifications: ● Wheel diameter D (mm): 100 ● Type: Swivel type (with stopper) ● Allowable load (daN): 50 ● Allowable load (kgf): 51 ● Wheel width (mm): 27 ● Mounting height H (mm): 122 ● Mounting seat A (mm): 100 ● Mounting seat B (mm): 58 ● Mounting pitch X (mm): 82 ● Mounting pitch Y (mm): 40 ● Mounting hole diameter P (mm): 8.8 ● Allowable load (N): 600 ● Plate type ● Radial ball bearings are used for the main body turning part and bearing part ● Swivel type (with stopper) Materials/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium chemical treatment ● Wheels: Nylon wheel, rubber
