Hammer, silent swivel rubber wheel (nylon wheel, radial ball bearing), 125 mm, with stopper, 413BBS-FR125, 1 piece

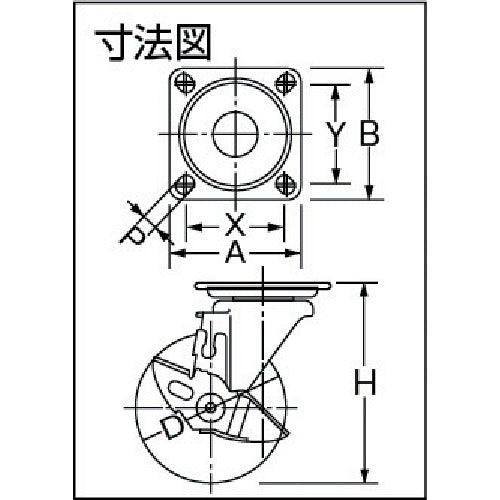

Catalogue number: 413BBS-FR125 Features: ● Reduces noise generated when turning and when the wheels rotate. ● Reduces turning force. Applications: ● For carts that require light weight and quiet operation. Specifications: ● Wheel diameter D (mm): 125 ● Type: Swivel type (with stopper) ● Allowable load (daN): 130 ● Allowable load (kgf): 132.6 ● Wheel width (mm): 38 ● Mounting height H (mm): 168 ● Mounting seat A (mm): 102 ● Mounting seat B (mm): 102 ● Mounting pitch X (mm): 75-80 ● Mounting pitch Y (mm): 75-80 ● Mounting hole diameter P (mm): 11 ● Allowable load (N): 1300 ● Plate type ● Main body turning part, wheel bearing part: Uses radial ball bearing ● Swivel type (with stopper) Materials/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium conversion treatment ● Wheels: Nylon wheel, rubber
