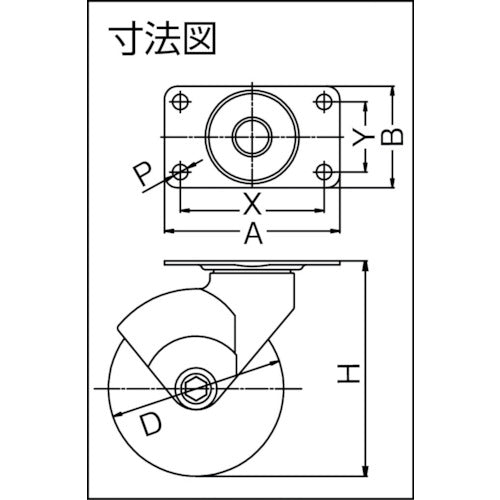

Catalogue number: 740M-FR100 Features: ●Reduces noise generated during turning. ●Radial ball bearings are used for the turning section and wheel bearings. The use of a resin body for the turning body makes it lighter and quieter. Applications: ●From shopping carts to trolleys. Specifications: ●Wheel diameter D (mm): 100 ●Type: Swivel ●Allowable load (daN): 50 ●Allowable load (kgf): 51 ●Wheel width (mm): 30 ●Mounting height H (mm): 123 ●Mounting seat A (mm): 100 ●Mounting seat B (mm): 58 ●Mounting pitch X (mm): 82 ●Mounting pitch Y (mm): 40 ●Mounting hole diameter P (mm): 8.8 ●Plate type ●Swivel type Materials/Finish: ●Body: Resin ●Plate section: Trivalent chromium conversion treatment ●Wheels: PP wheels, rubber-wrapped wheels with radial ball bearings
