Hammer E series all stainless steel swivel urethane wheel (roller bearing) 100mm with stopper 315E-UB100 1 piece

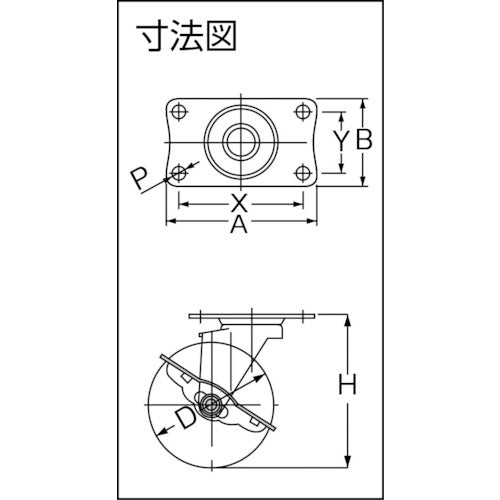

Catalogue number: 315E-UB100 Features: ● Made of all stainless steel with excellent corrosion resistance and water resistance. Applications: ● Widely used in areas around water, food, and the marine industry. Specifications: ● Wheel diameter D (mm): 100 ● Type: Free-wheeling (with stopper) ● Allowable load (daN): 60 ● Allowable load (kgf): 61.2 ● Wheel width (mm): 27 ● Mounting height H (mm): 122 ● Mounting seat A (mm): 100 ● Mounting seat B (mm): 58 ● Mounting pitch X (mm): 82 ● Mounting pitch Y (mm): 40 ● Mounting hole diameter P (mm): 8.8 ● Plate type ● Free-wheeling (with stopper) Materials/Finish: ● Metal fittings: Stainless steel (SUS304) ● Wheels: Nylon wheel, thermoplastic urethane
