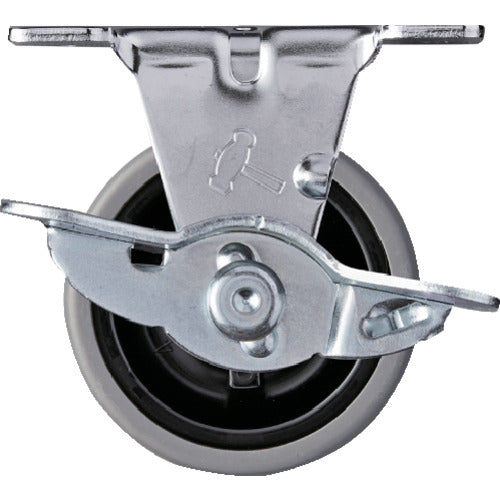

Hammer E series fixed elastomer wheel (PP wheel) 50 mm with stopper 415ER-L50 1 piece

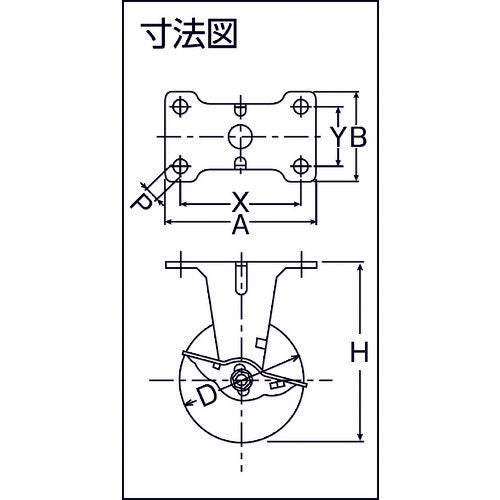

Catalog number: 415ER-L50 Features: ●A cost-effective model that uses elastomer material to eliminate marking issues. ●Achieves soft, quiet running performance not found in hard wheels. ●Complies with RoHS. Specifications: ● Wheel diameter D (mm): 50 ● Type: Fixed type (with stopper) ● Allowable load (daN): 30 ● Allowable load (kgf): 30.6 ● Wheel width (mm): 21 ● Mounting height H (mm): 65 ● Mounting seat A (mm): 70 ● Mounting seat B (mm): 42 ● Mounting pitch X (mm): 56 ● Mounting pitch Y (mm): 28 ● Mounting hole diameter P (mm): 6.5 ● Mounting height (mm): 65 ● Mounting seat (mm): 70 x 42 ● Mounting dimensions (mm): 56 x 28 ● Mounting hole diameter (mm): 6.5 ● Fixed type (with stopper) ● Plate type Material / Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Chrome plated finish ● Wheels: Elastomer
