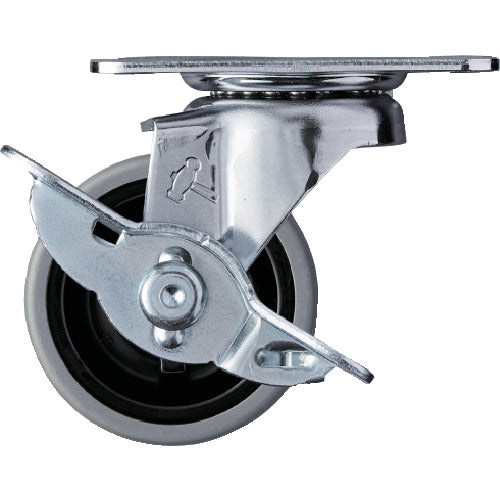

Hammer E series swivel elastomer wheel (PP wheel) 50mm with stopper 415E-L50 1 piece

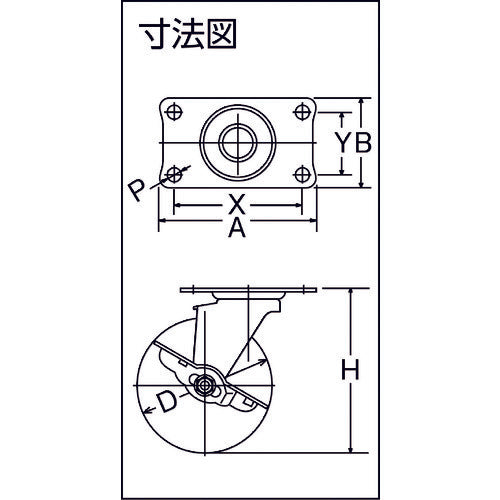

Catalog number: 415E-L50 Features: ●A cost-effective model that uses elastomer material to solve the marking problem. ●Achieves soft and quiet running performance not found in hard wheels. ●Complies with RoHS. Specifications: ● Wheel diameter D (mm): 50 ● Type: Free-wheeling (with stopper) ● Allowable load (daN): 30 ● Allowable load (kgf): 30.6 ● Wheel width (mm): 21 ● Mounting height H (mm): 65 ● Mounting seat A (mm): 70 ● Mounting seat B (mm): 42 ● Mounting pitch X (mm): 56 ● Mounting pitch Y (mm): 28 ● Mounting hole diameter P (mm): 6.5 ● Mounting height (mm): 65 ● Mounting seat (mm): 70 x 42 ● Mounting dimensions (mm): 56 x 28 ● Mounting hole diameter (mm): 6.5 ● Free-wheeling (with stopper) ● Plate type Material/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Chrome-plated finish ● Wheels: Elastomer
