Hammer G series swivel elastomer wheel (PP wheel) 75mm with stopper 415G-L75 1 piece

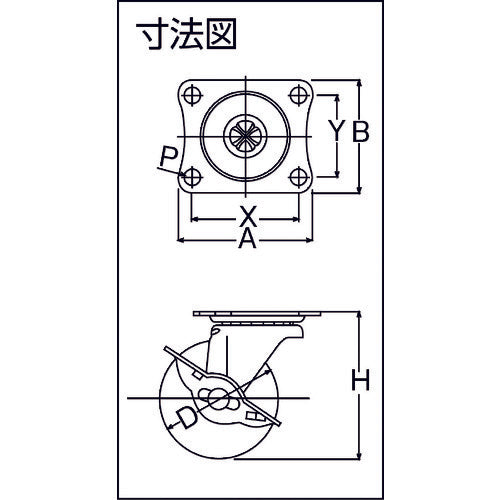

Catalog number: 415G-L75 Features: ●A cost-effective model that uses elastomer material to eliminate marking issues. ●Achieves soft, quiet running performance not found in hard wheels. ●Complies with RoHS. Specifications: ● Wheel diameter D (mm): 75 ● Type: Free-wheeling (with stopper) ● Allowable load (daN): 50 ● Allowable load (kgf): 51 ● Wheel width (mm): 27 ● Mounting height H (mm): 90 ● Mounting seat A (mm): 70 ● Mounting seat B (mm): 58 ● Mounting pitch X (mm): 55 ● Mounting pitch Y (mm): 42 ● Mounting hole diameter P (mm): 8.8 ● Mounting height (mm): 90 ● Mounting seat (mm): 70 x 58 ● Mounting dimensions (mm): 55 x 42 ● Mounting hole diameter (mm): 8.8 ● Free-wheeling (with stopper) ● Plate type Material/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium chemical conversion treatment ● Wheels: Elastomer
