Hammer G series swivel type nylon wheel 50mm with stopper 415G-N50 1 piece

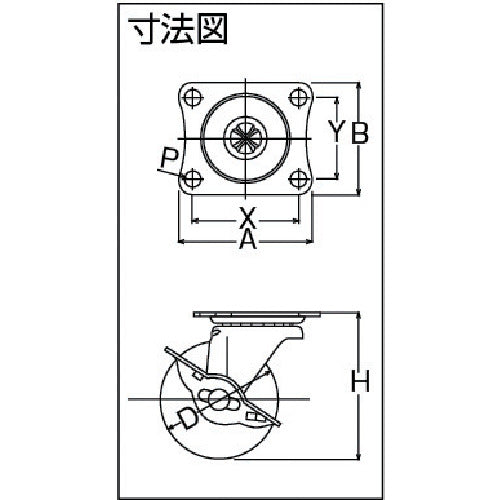

Catalog number: 415G-N50 Features: ●The most widely produced product, and used in a variety of locations. ●Complies with RoHS. Applications: ●An all-purpose, lightweight type for both indoor and outdoor use. Specifications: ●Wheel diameter D (mm): 50 ●Type: Swivel (with stopper) ●Allowable load (daN): 38 ●Allowable load (kgf): 38.76 ●Wheel width (mm): 21 ●Mounting height H (mm): 65 ●Mounting seat A (mm): 59 ●Mounting seat B (mm): 47 ●Mounting pitch X (mm): 46 ●Mounting pitch Y (mm): 35 ●Mounting hole diameter P (mm): 6.5 ●Allowable load (N): 380 ●Plate type ●Swivel type (with stopper) Material/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent chromium conversion treatment ●Wheels: Nylon
