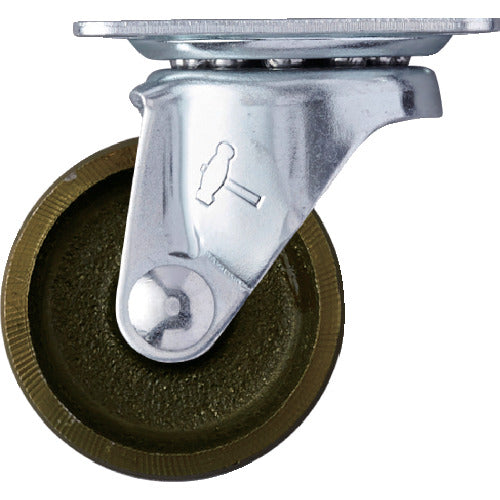

Hammer G series swivel caster 38mm 420G-C38 1 piece

Catalogue number: 420G-C38 Features: ●The most widely produced and used in a variety of locations. Specifications: ●Wheel diameter D (mm): 38 ●Type: Swivel ●Allowable load (daN): 30 ●Allowable load (kgf): 30.6 ●Wheel width (mm): 17 ●Mounting height H (mm): 50 ●Mounting seat A (mm): 46 ●Mounting seat B (mm): 38 ●Mounting pitch X (mm): 36 ●Mounting pitch Y (mm): 28 ●Mounting hole diameter P (mm): 5.3 ●Mounting height (mm): 50 ●Mounting hole diameter (mm): 5.3 ●Mounting dimensions (mm): 36 x 28 ●Mounting seat (mm): 46 x 38 ●Plate type Material/Finish: ●Body: Steel ●Surface treatment: Trivalent chromate conversion treatment ●Wheels: Cast iron
