Hammer J Series Fixed Urethane Wheel B 100mm 420JR-UBB100 1 pc

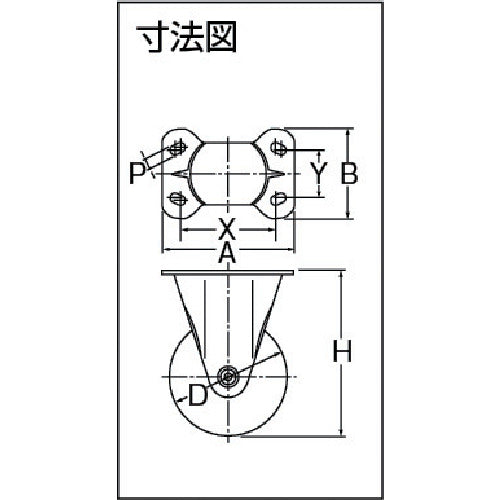

Catalogue number: 420JR-UBB100 Features: ● Equipped with radial ball bearings, it rotates easily and has very strong resistance to loads. Applications: ● An all-purpose caster for medium to heavy loads. Specifications: ● Wheel diameter D (mm): 100 ● Type: Fixed type ● Allowable load (daN): 140 ● Allowable load (kgf): 142.8 ● Wheel width (mm): 32 ● Mounting height H (mm): 140 ● Mounting seat A (mm): 110 ● Mounting seat B (mm): 78 ● Mounting pitch X (mm): 80 ● Mounting pitch Y (mm): 45 ● Mounting hole diameter P (mm): 11 ● Allowable load (N): 1400 ● Plate type ● Equipped with radial ball bearings ● Fixed type Materials/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium conversion treatment ● Wheels: Steel wheels, thermosetting urethane
