Hammer J series, swivel, urethane wheel B included, 150 mm, 420J-UBB150, 1 piece

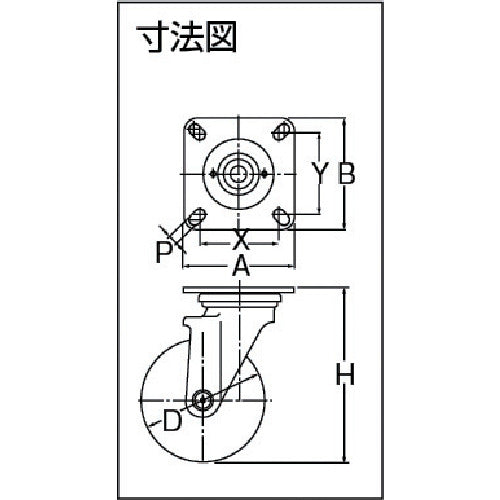

Catalogue number: 420J-UBB150 Features: ● Equipped with radial ball bearings, it rotates easily and has very strong resistance to loads. Applications: ● An all-purpose caster for medium to heavy loads. Specifications: ● Wheel diameter D (mm): 150 ● Type: Swivel ● Allowable load (daN): 220 ● Allowable load (kgf): 224.4 ● Wheel width (mm): 40 ● Mounting height H (mm): 199 ● Mounting seat A (mm): 120 ● Mounting seat B (mm): 120 ● Mounting pitch X (mm): 90-100 ● Mounting pitch Y (mm): 90-100 ● Mounting hole diameter P (mm): 11 ● Allowable load (N): 2200 ● Plate type ● Equipped with radial ball bearings ● Swivel Materials/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium conversion treatment ● Wheels: Steel wheels, thermosetting urethane
