Hammer J series, swivel, SP included, urethane wheel B included, 125mm, 413J-UBB125, 1 piece

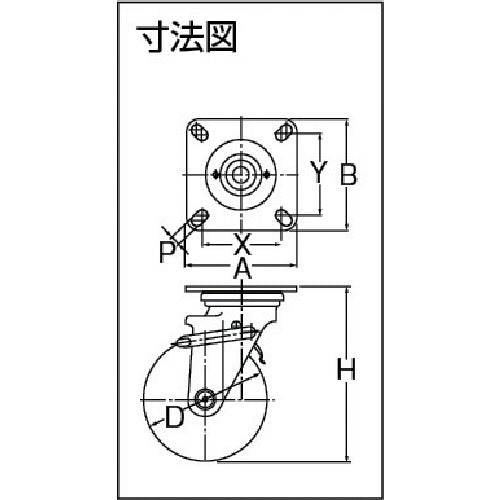

Catalog number: 413J-UBB125 Features: ● Equipped with radial ball bearings, it rotates easily and has very strong resistance to loads. Applications: ● An all-purpose caster for medium to heavy loads. Specifications: ● Wheel diameter D (mm): 125 ● Type: Free-wheeling (with double stoppers) ● Allowable load (daN): 200 ● Allowable load (kgf): 204 ● Wheel width (mm): 38 ● Mounting height H (mm): 174 ● Mounting seat A (mm): 110 ● Mounting seat B (mm): 110 ● Mounting pitch X (mm): 80-90 ● Mounting pitch Y (mm): 80-90 ● Mounting hole diameter P (mm): 11 ● Allowable load (N): 2000 ● Plate type ● Radial ball bearing included ● Free-wheeling (with double stoppers) ● Locks swivel and wheels simultaneously Materials/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium conversion treatment ● Wheels: Steel wheels, thermosetting urethane
