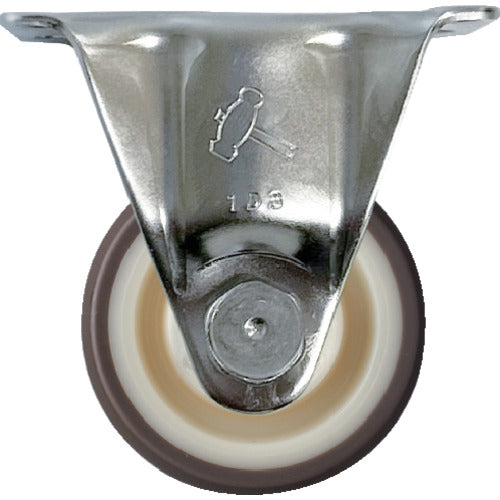

Hammer S series all stainless steel fixed urethane wheel (roller bearing) 50mm 320SR-UB50 1 piece

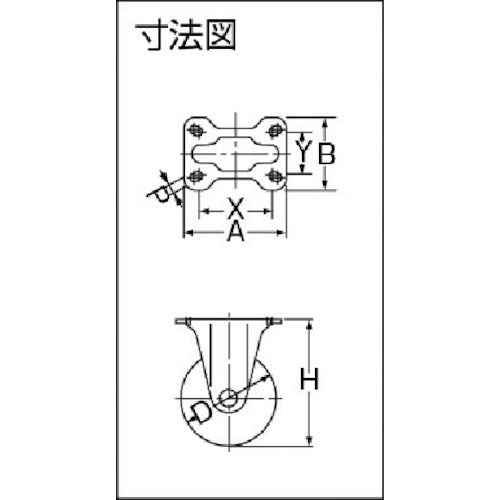

Catalogue number: 320SR-UB50 Features: ● Made of all stainless steel with excellent corrosion and water resistance. ● RoHS compliant. Applications: ● Widely used in wet areas, food and fisheries. Specifications: ● Wheel diameter D (mm): 50 ● Type: Fixed type ● Allowable load (daN): 60 ● Allowable load (kgf): 61.2 ● Wheel width (mm): 25 ● Mounting height H (mm): 70 ● Mounting seat A (mm): 70 ● Mounting seat B (mm): 47 ● Mounting pitch X (mm): 55 ● Mounting pitch Y (mm): 28 ● Mounting hole diameter P (mm): 8.8 ● Allowable load (N): 600 ● Plate type ● Fixed type Materials/Finish: ● Metal fittings: Stainless steel (SUS304) ● Wheels: Nylon wheel, thermoplastic urethane
