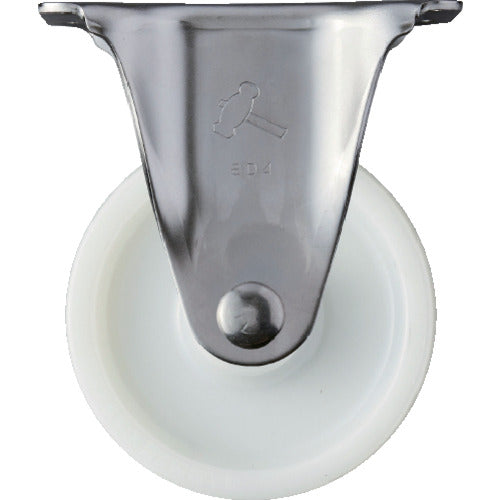

Hammer S series all stainless steel fixed nylon wheel (roller bearing) 100mm 320SR-NRB100 1 piece

Catalog number: 320SR-NRB100 Features: ● All stainless steel, so it is extremely durable and water resistant. Applications: ● For carts and equipment used in environments where rust and corrosion are unacceptable, such as food factories, stores, and offices. Specifications: ● Wheel diameter D (mm): 100 ● Type: Fixed type ● Allowable load (daN): 120 ● Allowable load (kgf): 122.4 ● Wheel width (mm): 29 ● Mounting height H (mm): 132 ● Mounting seat A (mm): 100 ● Mounting seat B (mm): 87 ● Mounting pitch X (mm): 80-90 ● Mounting pitch Y (mm): 45-50 ● Mounting hole diameter P (mm): 11 ● Eccentricity E (mm): 35 ● Turning radius (mm): 86 ● Plate type ● Wheel fixing method: Nut Material/Finish: ● Metal fittings: Stainless steel ● Wheels: Nylon wheel rubber
