Hammer S series all stainless steel swivel urethane wheel (roller bearing) 150mm with stopper 315S-UB150 1 piece

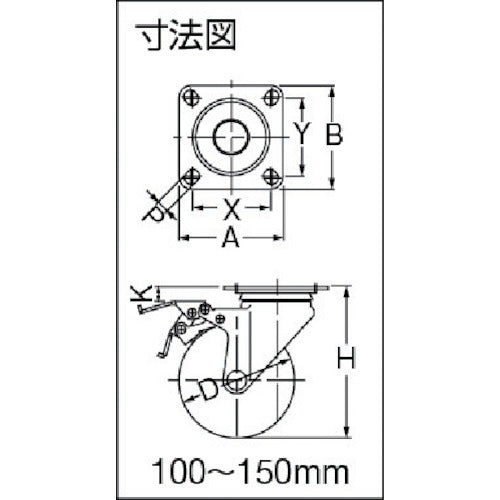

Catalog number: 315S-UB150 Features: ● Made of all stainless steel with excellent corrosion resistance and water resistance. ● RoHS compliant. Applications: ● Widely used in areas around water, food, and seafood. Specifications: ●Wheel diameter D (mm): 150 ●Type: Free-wheeling (with stopper) ●Permissible load (daN): 140 ●Permissible load (kgf): 142.8 ●Wheel width (mm): 38 ●Mounting height H (mm): 190 ●Mounting seat A (mm): 102 ●Mounting seat B (mm): 102 ●Mounting pitch X (mm): 75-80 ●Mounting pitch Y (mm): 75-80 ●Mounting hole diameter P (mm): 11 ●Permissible load (N): 1400 ●Plate type ●Swivel type (with stopper) Material/Finish: ●Metal fittings: Stainless steel (SUS304) ●Wheels: Nylon wheel, thermoplastic urethane Note: ●315S-UB50, 65, 75 are side stopper types, 315S-UB100, 125, 150 are front stoppers.
