Hammer S series all stainless steel swivel urethane wheel (roller bearing) 150mm 320S-UB150 1 piece

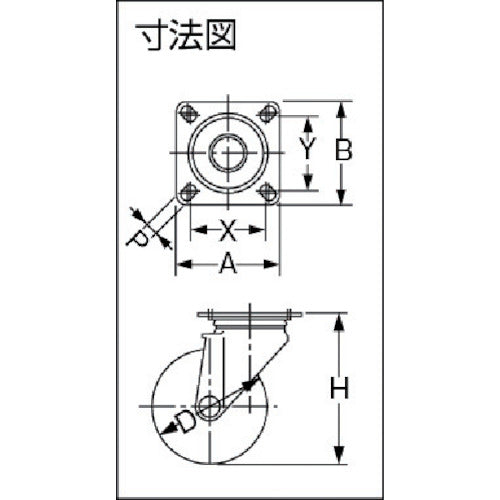

Catalogue number: 320S-UB150 Features: ● Made of all stainless steel with excellent corrosion and water resistance. ● RoHS compliant. Applications: ● Widely used in areas around water, food and fisheries. Specifications: ● Wheel diameter D (mm): 150 ● Type: Swivel ● Allowable load (daN): 140 ● Allowable load (kgf): 142.8 ● Wheel width (mm): 38 ● Mounting height H (mm): 190 ● Mounting seat A (mm): 102 ● Mounting seat B (mm): 102 ● Mounting pitch X (mm): 75-80 ● Mounting pitch Y (mm): 75-80 ● Mounting hole diameter P (mm): 11 ● Allowable load (N): 1400 ● Plate type ● Swivel Material/Finish: ● Metal fittings: Stainless steel (SUS304) ● Wheels: Nylon wheel, thermoplastic urethane
