Hammer S series all stainless steel swivel rubber wheel (nylon wheel) 100mm with stopper 315S-RU100 1 piece

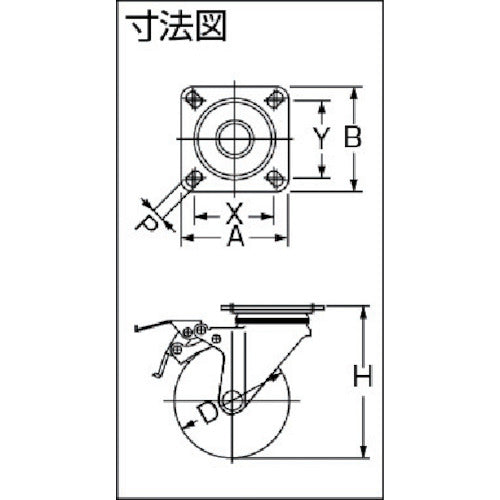

Catalog number: 315S-RU100 Features: ● Made entirely of stainless steel, it has excellent corrosion resistance and water resistance. ● RoHS compliant. Applications: ● Widely used in areas around water, food, and seafood. Specifications: ● Wheel diameter D (mm): 100 ● Type: Free-swivel type (with stopper) ● Permissible load (daN): 120 ● Permissible load (kgf): 122.4 ● Wheel width (mm): 32 ● Mounting height H (mm): 132 ● Mounting seat A (mm): 90 ● Mounting seat B (mm): 90 ● Mounting pitch X (mm): 68-71 ● Mounting pitch Y (mm): 68-71 ● Mounting hole diameter P (mm): 11 ● Permissible load (N): 1200 ● Plate type ● Free-swivel type (with stopper) ● Wheel shape: Nylon wheel rubber-wrapped wheel Material/Finish: ● Metal fittings: Stainless steel (SUS304) ● Wheels: Rubber Note: ● 315S-R65 and 75 are 315S-RD50 stopper types, 315S-RU125 and 150 are 315S-RU100 stopper types.
