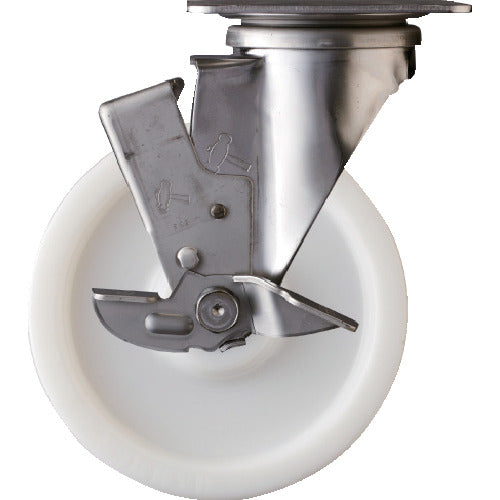

Hammer S series All stainless steel Swivel SP attached Nylon B wheel 200mm 319S-NRB200 1 piece

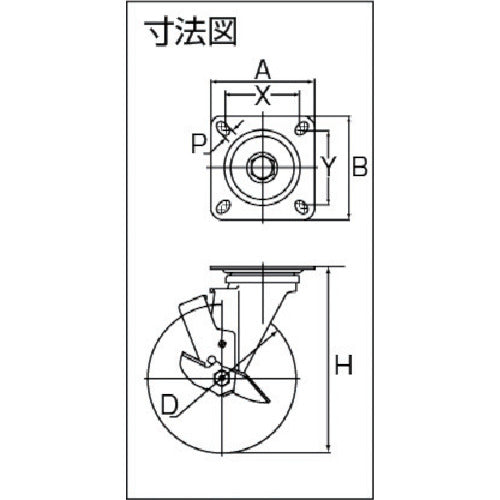

Catalog number: 319S-NRB200 Features: ● All stainless steel with excellent corrosion resistance and water resistance. ● RoHS compliant. Applications: ● For food and fishery related applications that must avoid rust, and for chemical applications that use solvents. Specifications: ● Wheel diameter D (mm): 200 ● Type: Free-wheeling (with stopper) ● Allowable load (daN): 220 ● Allowable load (kgf): 224.4 ● Wheel width (mm): 44 ● Mounting height H (mm): 250 ● Mounting seat A (mm): 140 ● Mounting seat B (mm): 140 ● Mounting pitch X (mm): 100-112 ● Mounting pitch Y (mm): 100-112 ● Mounting hole diameter P (mm): 13 ● Mounting pitch (mm): 100 x 100 (112 x 112) ● Free-wheeling (with stopper) ● Plate type Material / Finish: ● Metal fittings: Stainless steel (SUS304) ● Wheels: Nylon integrated wheels (with stainless steel radial ball bearings)
