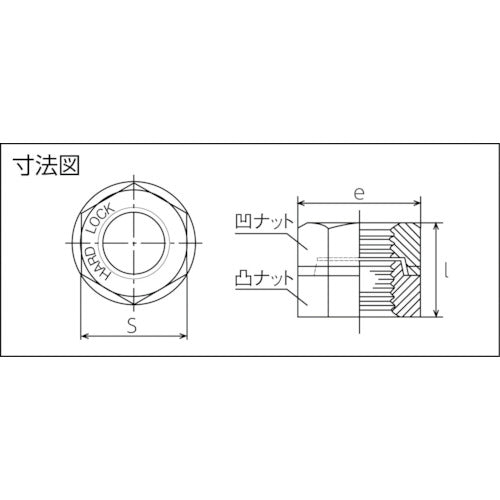

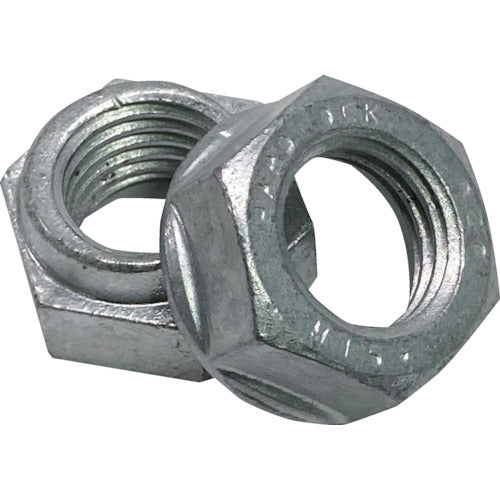

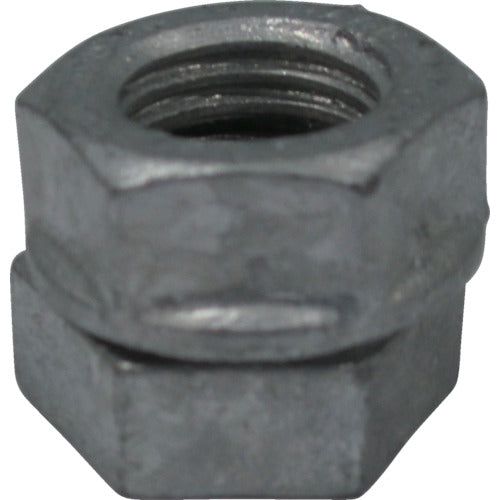

Catalog number: HLN-R-10C-01-HD Features: ● Made of all metal, it has few wear points, maintains a high anti-loosening effect, and can be used repeatedly. ● Passes the US NAS test aviation standards. ● NETIS registration number: KK-130006-VE Applications: ● The strongest anti-loosening nut. Maintenance-free, with a proven track record in all industrial fields. Specifications: ● Nominal diameter: M10 x 1.5 ● Strength category: Class 4 ● Dimensions (mm) e: 19.6 ● Dimensions (mm) l: 13.2 ● Dimensions (mm) s: 17 ● s dimensions Material/Finish: ● Steel (equivalent to SS400) ● Surface treatment: Hot-dip galvanized finish
