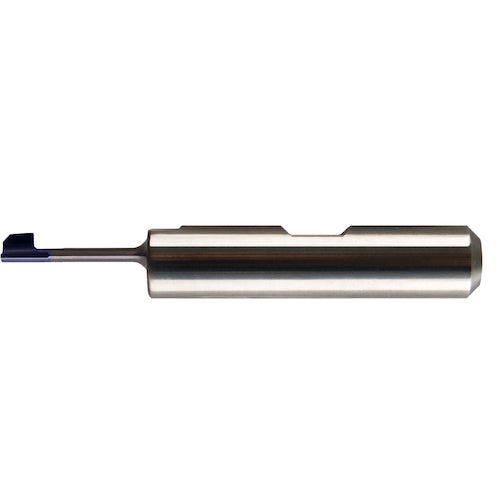

Catalog number: RBS - M55100 Features: ● Cap screws M3 to M9 can be countersunk. ● A wide range of materials can be machined, from general steel to cast iron, stainless steel, and aluminum. ● Stable countersinking with good chip removal. ● Effective for a wide range of materials, from general steel to cast iron, stainless steel, and aluminum. Applications: ● For countersinking cap screws. ● Use with left rotation. Specifications: ● Shank diameter (mm): 12 ● Total length (mm): 73 ● Countersink diameter (mm): 10.0 ● For M5 ● Effective machining depth (mm): 23 ● Blade diameter (mm): 10.0 ● Neck length (mm): 23 ● Minimum pilot hole diameter (mm): 5.5 ● Eccentricity (mm): 2.4 ● Effective length (mm): 28 ● Solid carbide type ● Surface treatment: TiAlN coating ● Left rotation specifications Material/Finish: ● Carbide
