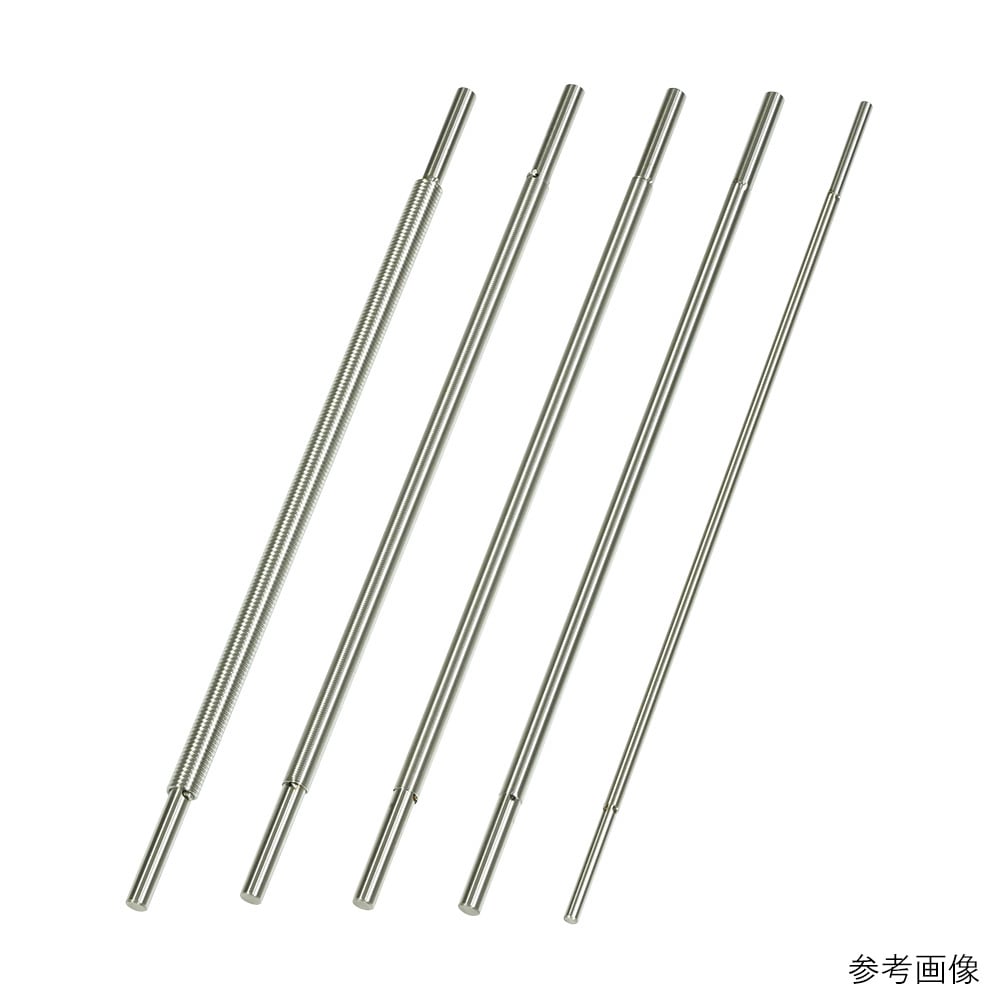

Bar coater approx. Φ101.6μm No.4 1 piece

The stainless steel wire is wrapped around the stainless steel rod with no gaps between them, and this spacing ensures a uniform film thickness. It uses a Φ9.5mm (3/8 inch) core, which provides stability with little bending when applying. The film thickness varies depending on the wire number (strand diameter). It can be held with both hands, making it easy to apply. Several types of paint can be applied at the same time for comparison. Wire diameter (μm): Approx. Φ101.6 Reference wet film thickness (μm): 10.2 Quantity: 1 Material: Core: SUS303, Wire (strand): SUS302 Core diameter: Φ9.5mm (3/8 inch) Overall length: 406mm (16 inches) Coating width: 304mm (12 inches) *The reference wet film thickness (μm) is a reference value. It varies depending on the coating material used, such as the paint, and the speed at which the bar coater is pulled.
