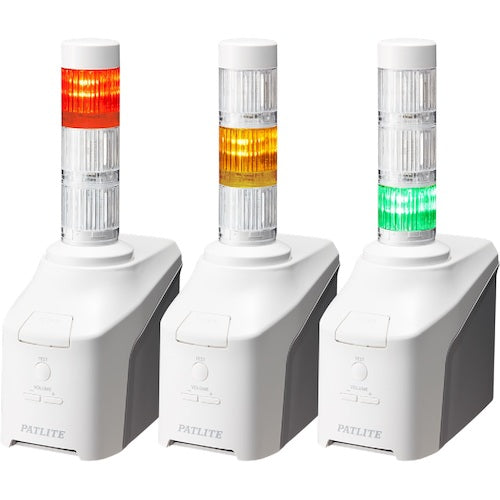

PATLITE Network control signal light NHB series NHB Φ60 NHB6-3-RYG 1 unit

Catalog number: NHB6-3-RYG Features: ● Instantly reports network information with light and sound. Applications: ● Supports various network protocols. ● Instantly reports events and abnormalities in network devices and systems with light and sound. ● Supports secure protocols such as HTTPS, SNMPv3, and SSH for safe and secure communication. ● In addition to alive monitoring by Ping monitoring, it also supports SNMP Trap reception. ● Can report with sound (buzzer). ● There are five preset buzzers, which can be played by command. Specifications: ●Color: Main body: Off-white/Medium gray, LED unit: Transparent ●Light color: Red, yellow, green ●Number of steps (steps): 3 ●Width (mm): 88 ●Depth (mm): 161 ●Height (mm): 270 ●Size: Φ60 ●Power consumption (W): Maximum 7.4W ●Rated voltage (V): DC24/DC jack, Input: AC100 to 240 (50Hz/60Hz) Output: DC24/Uses included AC adapter ●Protection rating: IP20 ●Installation location: Indoors ●Installation direction: Upward ●Network communication method Ethernet (IEEE 802.3 compliant)/10BASE-T/100BASE-TX/1000BASE-T (Auto MDI/MDI-X compatible) ●IP network IPv4/IPv6 dual stack ●IP address setting Manual setting/DHCP automatic setting ●Compatible cloud: Microsoft Azure (IoT HUB/IoTCentral)/Amazon Web Services (IoT Core)●Supported protocols: HTTP/HTTPS/NTP/RSH/SSH/SNMP(v1/v2c/v3)/SMTP/Socket●Conformity standards: UL 62368-1/CSA C22.2 No.62368-1/FCC Part 15 Subpart B(Class A)/ICES-003(Class A)/EN 55032(Class A)/EN 55035/EN IEC 63000/KS C 9610-6-4※/KS C 9610-6-2※/TR CU 020※/TR EEU 037※(※ N specification only)●Network control signal light NHB Φ60 3-stage red/yellow/green AC adapter included Material/Finish:●Head cover/LED unit: PC, Main body: ABS Set contents/Accessories:●AC adapter, adhesive sheet
