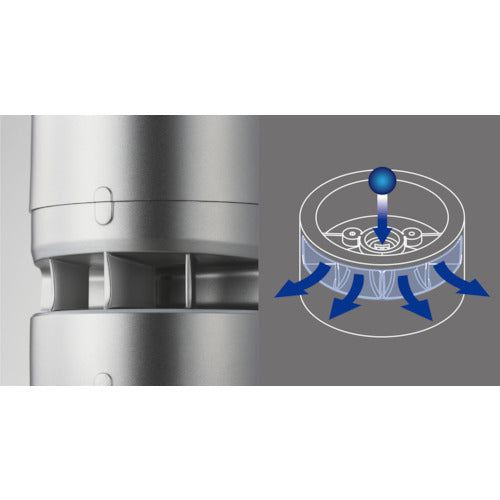

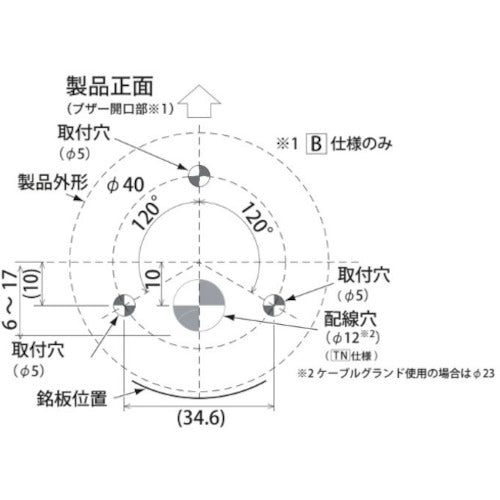

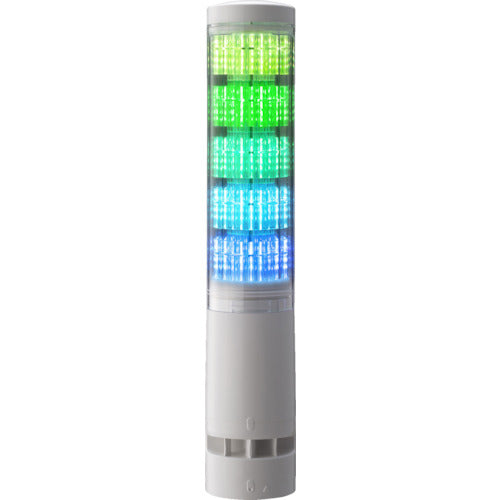

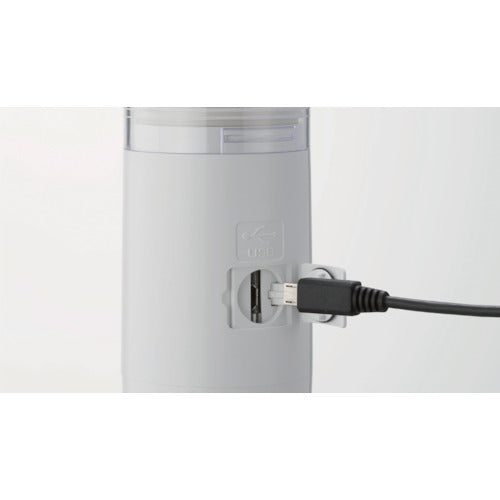

Catalog number: LA6-5DTNWB-RYGBC Features: ●In addition to displaying the status, the operation process of the equipment can be displayed in a new way. ●The built-in operation program allows you to freely set the emission color and operation mode. ●Abnormal levels can be displayed with a variety of emission colors. ●Includes a 5-stage buzzer. ●The emission color and emission pattern can be freely edited using the editing software (free of charge). ●Equipped with a CPU, various controls can be easily performed. Applications: ●To improve operation rates and visualize information. ●As an information display for industrial equipment. Specifications: ●Lens color: Clear ●Emitted color: 21 colors ●Rated voltage (V): DC24 ●Rated current (mA): 70 ●Built-in LED lamp: Multi-color ●Width (mm): 60 ●Depth (mm): 60 ●Height (mm): 330 ●Power consumption (W): 8.5 ●Number of stages (stages): 5 ●Protection class: IP54 ●Direct installation ●Installation pitch: φ40mm Material/Finish: ●Body: ABS resin ●Outer lens: Polycarbonate (PC)
