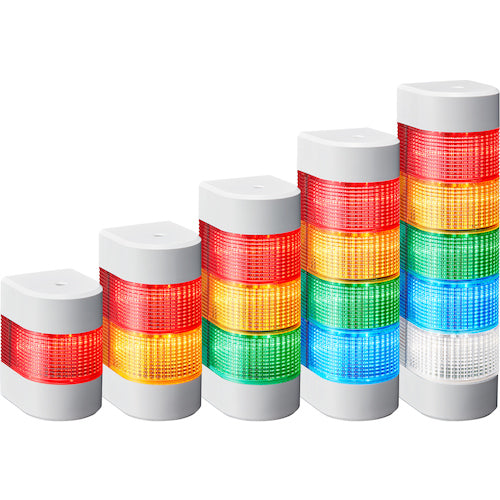

PATLITE LED wall mounted stacked signal light Signal tower Wall mount WME type WME-302DFB-RYG 1 unit

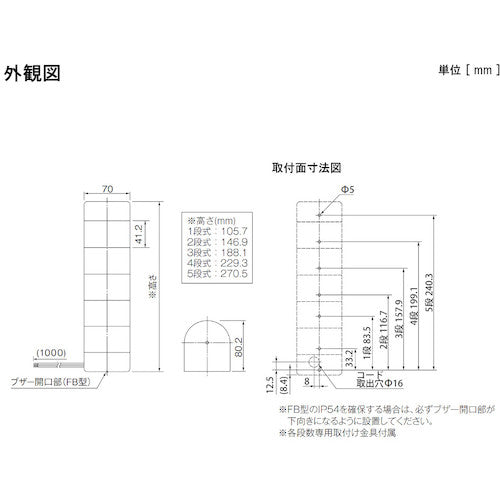

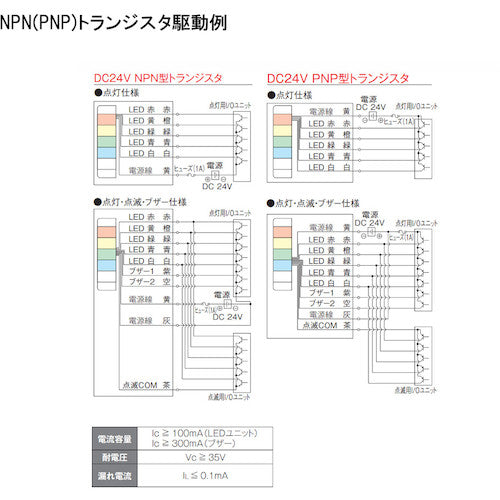

Catalog number: WME-302DFB-RYG Features: ● Even easier to use, wall-mounted stacked signal light. ● Ensures visibility when mounted on large equipment. ● Unit structure allows easy rearrangement and expansion of color arrangements. ● Open collector compatible, direct drive by PLC, etc. (DC24V specification, AC specification only compatible with NPN) ● Easy installation with dedicated mounting brackets. ● FB type has a built-in loud buzzer of 93dB.typ (at 1m) that can be heard even in noisy factories. (Volume cannot be adjusted) ● Can be installed freely according to purpose, such as vertical installation or horizontal installation. Applications: ● Dustproof and jet-proof IP54 structure for factories with a lot of moisture and dust. Specifications: ● Lens color: red, yellow, green ● Color: red, yellow, green ● Number of steps (steps): 3 ● Width (mm): 70 ● Depth (mm): 80.2 ● Height (mm): 188.1 ● Power consumption (W): 3.3 ● Rated voltage (V): DC24 ● Protection class: IP54 ● Operation specifications: Illuminated/blinking ● Buzzer: Yes ● Number of flashes (times/min): 60 ● Sound pressure (dB): 93 ● Number of sounds played: 2 types ● Installation location: Indoors ● Installation method: Forward/sideways/upwards/downwards ● LED wall-mounted stacked signal light Signal tower Wall mount WME-D type Material/Finish: ● Cord bushing: 66 nylon (black) ● Mounting hardware: SPCC/MFZn-C/+1.2 ● Bracket/LED unit assembly/head cover: PC resin Set contents/Accessories: ● Instruction manual Caution: ● Not compatible with the WME-A series LED units and head covers. To ensure IP54 for the FB type, be sure to install the buzzer so that the opening faces downwards.
