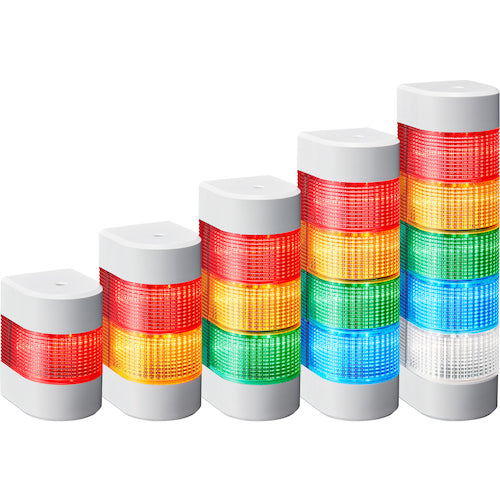

PATLITE LED wall mounted stacked signal light Signal tower Wall mount WME type WME-402D-RYGB 1 unit

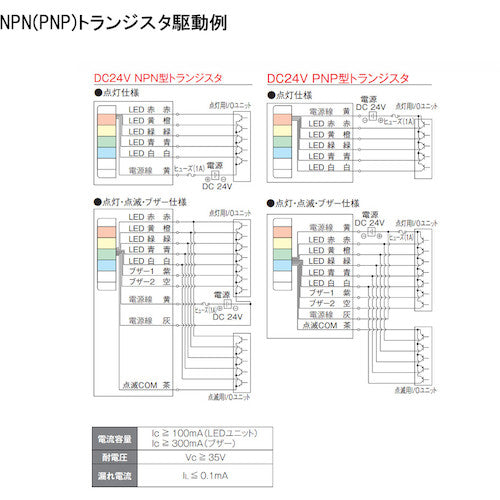

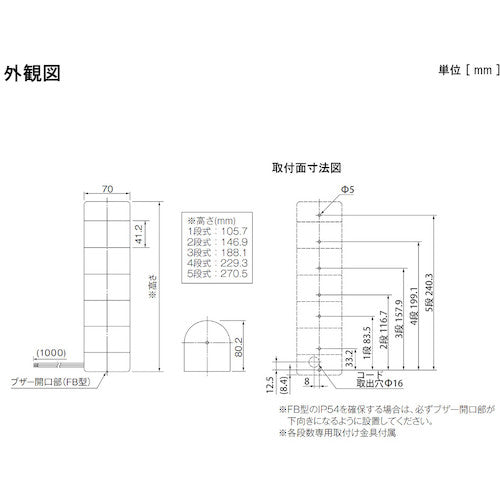

Catalog number: WME-402D-RYGB Features: ● Even easier to use, wall-mounted stacked signal light. ● Ensures visibility when mounted on large equipment. ● Unit structure allows easy rearrangement and expansion of color arrangements. ● Open collector compatible, direct drive by PLC, etc. (DC24V specification, AC specification only compatible with NPN) ● Dedicated mounting brackets allow easy installation. ● FB type has a built-in loud buzzer of 93dB.typ (at 1m) that can be heard even in noisy factories. (Volume cannot be adjusted) ● Can be installed vertically or horizontally according to purpose. Applications: ● Dustproof and jet-proof IP54 structure for factories with a lot of moisture and dust. Specifications: ●Lens color: red, yellow, green, blue●Color: red, yellow, green, blue●Number of stages (stages): 4●Width (mm): 70●Depth (mm): 80.2●Height (mm): 229.3●Power consumption (W): 3.0●Rated voltage (V): DC24●Protection rating: IP54●Operation specifications: Lights up●Buzzer: None●Installation location: Indoors●Installation method: Forward, sideways, upward, downward●LED wall-mounted stacked signal light Signal tower Wall mount WME-D type Material/Finish: ●Cord bushing: 66 nylon (black)●Mounting hardware: SPCC/MFZn-C/+1.2●Bracket, LED unit assembly, head cover: PC resin Set contents/Accessories: ●Instruction manual Caution: ●●Not compatible with the WME-A series LED units and head covers.
