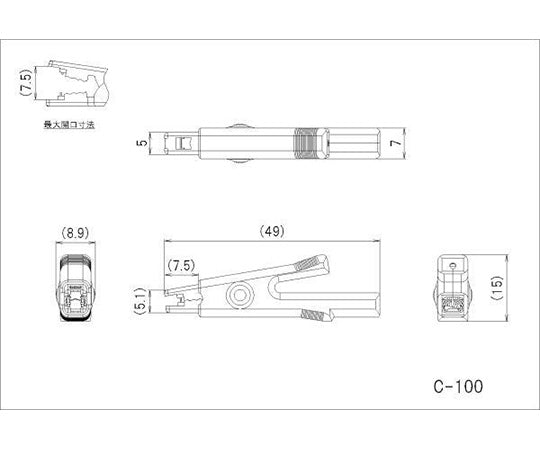

Power Clip 30V-5A Red C-100-R 1pc
Power Clip 30V-5A Red C-100-R 1pc
Regular price
¥847
Regular price
Sale price
¥847
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Rated voltage 30V-5A
Cover withstand voltage AC1000V (1 minute)
Cover insulation resistance DC500V, 100MΩ
Body material: Copper alloy
Cover material: Thermoplastic elastomer
Cover color: Red
Recommended holding objects: M3 to M4 size screw heads, electric wires (clip side)
The connection method is soldering or temporary crimping with pliers etc.
At the time of shipment, the same number of C-100-K and C-100-C will be shipped separately.
[Solder heat resistance conditions]
Manual soldering (soldering iron) conditions
Tip temperature: 390℃ or less
Iron application time: 10 seconds
Number of times: 2
