Parts Caster Pad Plate Type Double Wheel Caster Elastomer Wheel Load 117.6 White CAPS75UW 1 pc

Parts Caster Pad Plate Type Double Wheel Caster Elastomer Wheel Load 117.6 White CAPS75UW 1 pc

JAN：4582265500465 　
caster Dual Wheel Caster Hardware and building materials Parts Caster Plate type dual wheel caster
¥4,638
¥4,638
Sale Sold out
Shipping calculated at checkout.

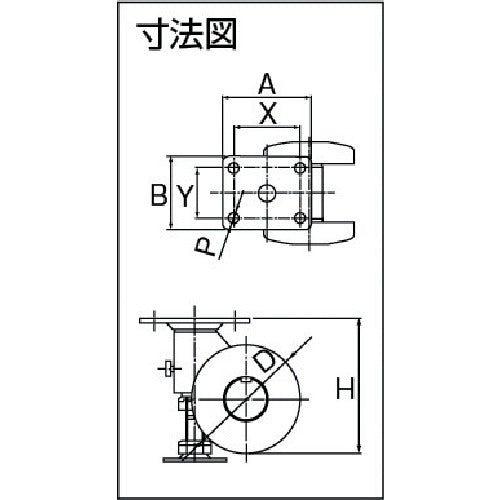

Catalog number: CAPS75UW Features: ● Quiet running noise prevents damage to floors. Specifications: ● Wheel diameter D (mm): 75 ● Type: Swivel ● Allowable load (daN): 117.6 ● Allowable load (kgf): 120 ● Wheel width (mm): 85 ● Mounting height H (mm): 92 ● Mounting seat A (mm): 74 ● Mounting seat B (mm): 61 ● Mounting pitch X (mm): 55 ● Mounting pitch Y (mm): 42 ● Mounting hole diameter P (mm): 8.5 ● Color: White ● Allowable load (N): 1200 ● Plate type Material/Finish: ● Metal fittings: Stainless steel (SUS304) ● Wheels: Elastomer
View full details
