Parts Castpad Plate-type double-wheel caster elastomer wheel Load capacity 58.8 White CNPF50UW 1 piece

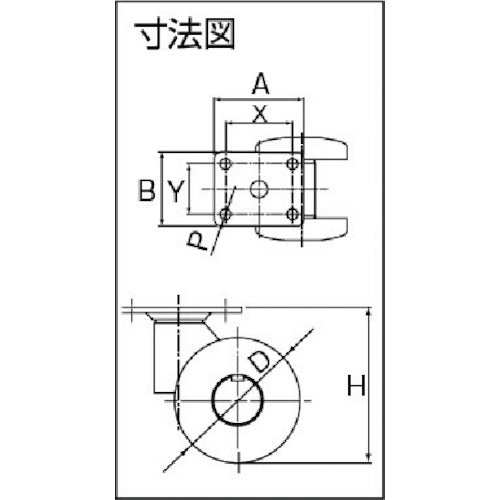

Catalogue number: CNPF50UW Features: ● Quiet running noise prevents damage to floors. Specifications: ● Wheel diameter D (mm): 50 ● Type: Swivel ● Allowable load (daN): 58.8 ● Allowable load (kgf): 60 ● Wheel width (mm): 70 ● Mounting height H (mm): 63 ● Mounting seat A (mm): 74 ● Mounting seat B (mm): 61 ● Mounting pitch X (mm): 55 ● Mounting pitch Y (mm): 42 ● Mounting hole diameter P (mm): 8.5 ● Color: White ● Allowable load (N): 600 ● Plate type Material/Finish: ● Metal fittings: Steel ● Metal fitting surface treatment: Trivalent chromate finish ● Wheels: Elastomer
