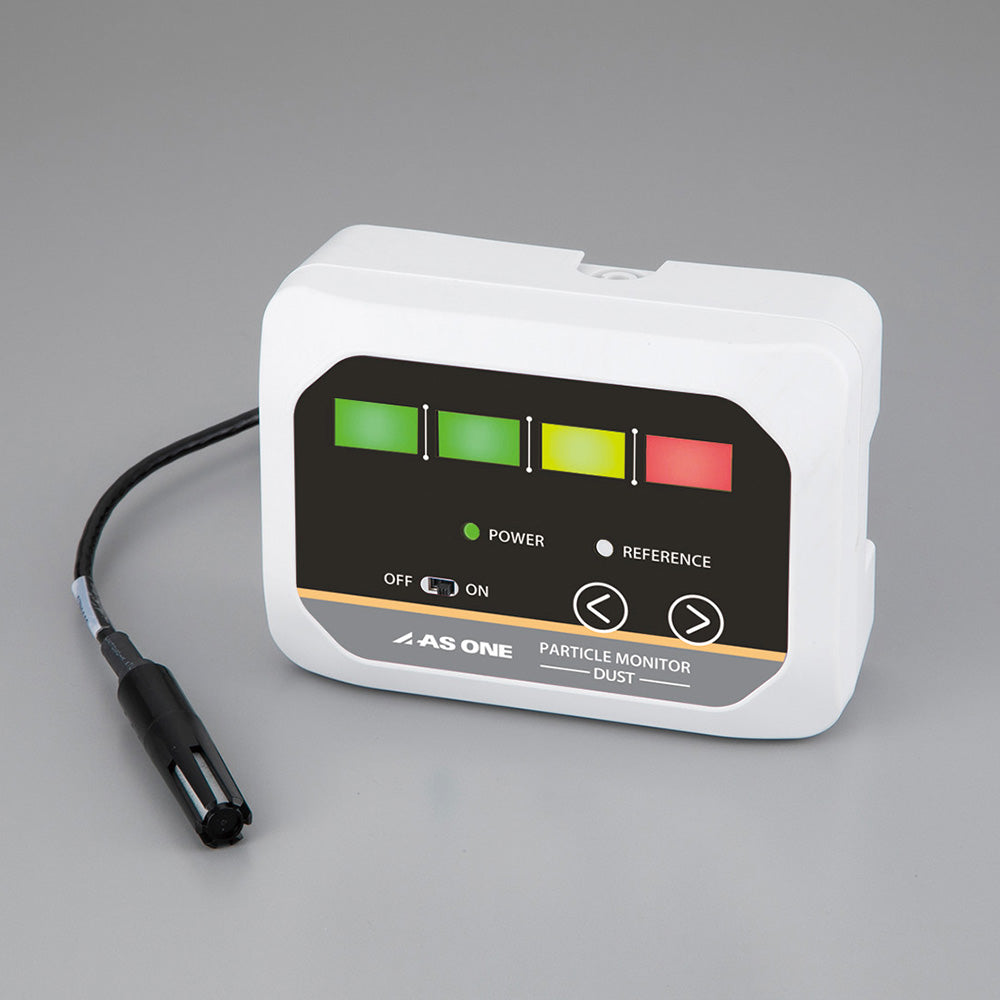

Particle monitor (dust meter) PA-DL 1 piece

Particles suspended in the air can be easily measured and displayed using the light scattering method. It is useful for measuring dust concentrations in the work environment for occupational safety and health management. Multi-point measurements and constant monitoring are possible in various locations. It is possible to visualize the air environment around the work site and inside the factory. It allows constant monitoring and instantly notifies you of any abnormalities. Dust concentration (μg/m3) can be displayed using a four-level LED. Linear measurement is possible up to approximately 300μg/m3. Measurement range: 0.0 to 300.0μg/m3*1 Output unit: 0.1μg/m3※2 Light source: Laser diode Measurement method: light scattering method Measurement sensitivity: 1CPM=0.1μg/m3 *Based on our standard tobacco smoke (=correction factor 1) *3 Sampling method: Fan suction Data output value: 60 second average value Data update time: 1 second Temperature and humidity measurement function: × Analog output: Yes Digital communication: × Alarm output: Yes Power supply: DC12-24V Digital communication method: Ethernet, Wi-Fi Accessories: AC adapter AC100-240V 50/60Hz Size (mm): 120 x 46.5 x 87 Weight (g): Approx. 210 Quantity: 1 piece *1 Please avoid using this product in environments where the measurement range is greatly exceeded or in environments where the product is directly exposed to metal powder, such as at welding processing sites. *2 CPM is not output. *3 Compared to our standard tobacco smoke (= correction factor 1) (The correction factor can be changed on the evaluation software).
